Pancake Load Cell: The Ultimate Guide for Precision Force Measurement In industries that rely heavily on accurate force measurement, the pancake load cell stands out as a robust and reliable solution. Also known as low-profile load cells, these devices are designed to offer precise force readings in both tension and compression applications. Whether you're working in aerospace, automotive, manufacturing, or testing environments, understanding how pancake load cells work—and how to choose the right one—is crucial for efficiency and safety. In this comprehensive guide, we’ll explore what a pancake load cell is, how it works, its key features, applications, and tips for selecting the right model for your needs. What Is a Pancake Load Cell? A pancake load cell is a type of force transducer designed with a flat, disc-like shape—hence the name “pancake.” These load cells are engineered to measure axial loads, either in tension or compression, and they are known for their high accuracy, low profile, and wide load capacity range (from a few kilograms to several tons). They are typically made from high-strength stainless steel or aluminum and feature strain gauge technology that converts applied mechanical force into an electrical signal. This allows precise force monitoring in various environments. Key Features of Pancake Load Cells Low Profile Design The compact, disc-shaped design makes pancake load cells ideal for applications with limited vertical space. Their flat geometry enables easy integration into machines and test setups. High Accuracy and Repeatability Due to their symmetrical design and central loading structure, these load cells deliver high linearity and repeatability, even in harsh conditions. Tension and Compression Measurement Pancake load cells are capable of measuring forces in both directions, making them highly versatile. Overload Protection Many models come with built-in overload protection, ensuring durability and minimizing damage from excessive loads. High Load Capacity Pancake load cells are available in various capacities, ranging from a few hundred pounds to over 500,000 pounds (or 250 tons). Customizable Options Manufacturers often provide custom mounting holes, integrated connectors, and environmental sealing (IP65, IP67, etc.) to suit specific applications. How Does a Pancake Load Cell Work? Pancake load cells operate on the strain gauge principle. Here’s a simplified breakdown of how they work: When a force is applied to the central hub of the load cell, it causes slight deformation in the metal body. This deformation is picked up by bonded strain gauges—tiny sensors that change resistance based on the amount of strain. The change in resistance is converted into a measurable electrical signal (typically in mV/V), which is then amplified and interpreted by a data acquisition system or digital display. The central loading mechanism ensures that force is evenly distributed, minimizing off-axis errors and enhancing accuracy. Common Applications of Pancake Load Cells Pancake load cells are used in a wide range of industries, including: 1. Automotive Testing Used for engine testing, brake testing, and chassis load measurement to ensure vehicle safety and performance. 2. Aerospace Ideal for structural testing, fatigue testing, and component validation under extreme conditions. 3. Industrial Automation In automated manufacturing lines, pancake load cells help monitor applied forces in robotic arms, press machines, and welding systems. 4. Material Testing Essential for tensile and compression testing of metals, plastics, and composites in R&D labs and quality control. 5. Construction and Structural Monitoring Used to monitor load distribution in bridges, support structures, and cranes. Advantages Over Other Load Cell Types While there are many types of load cells—such as S-beam, shear beam, and button load cells—pancake load cells offer unique advantages: Feature Pancake Load Cell S-Beam Load Cell Button Load Cell Load Direction Tension & Compression Tension & Compression Mostly Compression Accuracy Very High Medium to High Medium Profile Low Medium Very Low Capacity Range Broad Medium Low to Medium Mounting Requirements Central Bolt Threaded Rod Flat Surface Choosing the Right Pancake Load Cell When selecting a pancake load cell, consider the following factors: Load Capacity Choose a capacity that suits your expected force range but allows for potential overloads. Always factor in a safety margin. Environmental Conditions If used in outdoor or harsh industrial environments, opt for load cells with high IP ratings and corrosion-resistant materials. Mounting Requirements Make sure the load cell has the right mounting hole pattern and thread specifications for your setup. Output Signal Type Determine whether you need an analog output (e.g., mV/V, 4-20mA) or a digital output (e.g., RS485, USB) based on your data acquisition system. Cable and Connector Options Check whether the load cell comes with an integrated cable or detachable connector. In some cases, a shielded cable is important to reduce electrical noise. Calibration and Maintenance Tips To maintain the accuracy and longevity of your pancake load cell: Calibrate regularly using certified calibration weights or services. Avoid lateral forces or off-axis loading, which may affect performance. Inspect the load cell and mounting hardware for wear or misalignment. Store and handle with care, especially the sensor cable and connector area. Final Thoughts : A pancake load cell is a precision force measurement device known for its low profile, high accuracy, and versatility. Whether you're involved in R&D, industrial automation, or structural testing, these load cells offer reliable performance across a broad range of applications. When properly selected and maintained, a pancake load cell can be a long-term solution that enhances the accuracy and safety of your measurement systems.

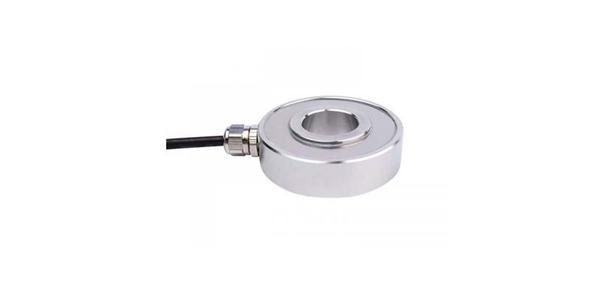

What is a Donut Type Load Cell? A donut type load cell is a circular, ring-shaped force transducer with a central hole through which a rod, bolt, cable, or shaft can pass. This design enables direct axial force measurement while allowing mechanical components to move or rotate freely through the sensor. These sensors are ideal for environments where space is limited and force must be applied through a central axis. Donut load cells are often used in compression force measurement but may also support tension in specific configurations. Common alternate names include: Through-hole load cell Ring force sensor Center-hole load cell Compression donut load cell How Donut Type Load Cells Work Donut load cells typically use strain gauge technology to detect and quantify applied forces. Here’s a breakdown of their working principle: Force Transmission: A force is applied through the center hole of the load cell, either via a shaft, bolt, or direct press force. Deformation and Strain: The applied load causes microscopic deformations in the metallic structure of the load cell body. Strain Gauge Response: Strain gauges bonded to the sensor detect this deformation. These gauges change electrical resistance based on the strain they experience. Signal Conversion: The resistance change is converted into an electrical signal, typically in millivolts (mV/V), which is calibrated to represent the actual force applied. Output and Data: The electrical signal can be sent to a display, PLC, DAQ system, or amplifier for real-time monitoring and analysis. Key Features of Donut Type Load Cells Central Through-Hole Design: Allows axial force application around bolts or shafts. Compact and Low-Profile: Ideal for tight spaces where traditional load cells cannot fit. High Load Capacity: Available in a wide range from a few pounds to hundreds of kilonewtons. Precision Measurement: High linearity, low hysteresis, and excellent repeatability. Rugged Construction: Usually made from stainless steel or aircraft-grade aluminum. Environmental Protection: Many models come sealed to IP65 or IP67 standards. Common Applications Donut type load cells are used across various sectors due to their versatility and space-saving design. Here are the most common use cases: 1. Bolt Force and Preload Monitoring Donut load cells are placed beneath bolt heads or nuts to measure clamping force. This is critical in high-stress or safety-sensitive applications, such as in aerospace structures or heavy machinery. 2. Press and Stamping Force Measurement Mounted beneath dies or in press machines, donut load cells monitor real-time pressing forces to ensure consistent product quality and prevent overloading. 3. Thrust Measurement in Motors and Actuators In electric motors and actuators, donut load cells help measure axial thrust forces, especially where a shaft must pass through the sensor. 4. Structural Testing Used in civil and mechanical engineering to measure forces in beams, joints, and supports, especially in test rigs with integrated bolts or support shafts. 5. Medical Device and Biomechanical Testing Miniature donut load cells are used in prosthetics, orthopedic testing devices, and rehabilitation equipment to monitor forces applied to the human body. 6. Cable Tension Monitoring In wire and cable applications, donut sensors provide real-time tension force data, especially during cable winding or stretching. Advantages of Donut Type Load Cells ✅ Space Efficiency Their compact, low-profile form factor makes them ideal for applications with limited installation space, such as tight assemblies or integrated mechanical systems. ✅ Central Load Path Unlike traditional load cells, the donut design allows the force to pass directly through the center, ensuring true axial force measurement. ✅ Versatile Mounting Donut load cells can be mounted on flat surfaces, integrated into existing mechanical assemblies, or sandwiched between components with ease. ✅ High Accuracy and Repeatability These sensors offer excellent measurement consistency, with typical accuracies of ±0.1% to ±0.5% of full scale. ✅ Durability Most models feature robust materials and environmental sealing for use in industrial, outdoor, or laboratory settings. Factors to Consider When Choosing a Donut Load Cell When selecting the right donut type load cell, keep the following criteria in mind: 1. Inner Diameter The central hole must fit around your bolt, shaft, or component. Choose a size that provides enough clearance without excessive play. 2. Outer Diameter and Height Ensure the sensor fits within your system’s spatial constraints. Low-profile models are available for tight vertical clearances. 3. Load Capacity Select a sensor that can handle your maximum expected load plus a margin (typically 20-30%). Overloading can damage the sensor permanently. 4. Mounting Requirements Some donut load cells come with mounting holes or flanges, while others require custom integration. Consider how you’ll secure the sensor. 5. Signal Output Most donut load cells provide mV/V output, but some include built-in amplifiers for 0-10V, 4-20mA, or USB output. 6. Environmental Conditions For outdoor or washdown applications, choose load cells with IP67 or higher ratings. Also consider temperature ranges and material corrosion resistance. 7. Calibration Needs Ensure the sensor is factory-calibrated and optionally certified to NIST standards. Periodic recalibration is essential for accuracy. Donut Load Cell Installation Tips Ensure Flat, Parallel Surfaces: Mount the load cell on flat, clean surfaces to prevent misalignment or uneven loading. Avoid Side Loads: Load must be applied axially through the center. Lateral or off-axis forces can affect measurement accuracy. Cable Strain Relief: Protect the sensor cable from excessive bending, pulling, or vibration. Use Load Buttons or Adapters: For even force distribution, especially in compression setups. Conclusion Donut type load cells offer an innovative and practical solution for axial force measurement in applications where the load passes through the sensor. Their compact design, high accuracy, and versatility make them suitable for a wide range of industries, including automotive, aerospace, medical, and manufacturing. When selected and installed correctly, these through-hole load cells deliver reliable, repeatable measurements that support both performance and safety. Whether you're monitoring bolt tension, measuring press forces, or integrating sensors into medical devices, donut type load cells are a compact powerhouse for precision force sensing. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

What is a Ring Type Load Cell? A ring type load cell, also known as a donut load cell or through-hole load cell, is a specialized force transducer with a circular, donut-like shape and a central hole. This hole allows the load cell to be installed around bolts, rods, or shafts, enabling direct measurement of axial compression forces. These load cells are especially useful when force needs to be measured around a mechanical component that passes through the sensor. Ring load cells are designed to measure compression-only forces, although some models may be configured for limited tension applications depending on design and mounting. How Ring Load Cells Work Ring type load cells generally use strain gauge technology to measure deformation caused by applied force. Here's how the process works: Force Application: A compressive force is applied through the central hole, pressing down on the sensor’s inner and outer rings. Strain Measurement: Strain gauges bonded to strategic locations on the load cell measure the minute deformations in the metal body as force is applied. Electrical Signal Output: The changes in resistance of the strain gauges are converted into an electrical signal, which is then processed and calibrated to represent the applied load accurately. Most ring type load cells are constructed using stainless steel or aluminum alloys, providing excellent durability and corrosion resistance. Key Features of Ring Type Load Cells Compact, Low-Profile Design: Ideal for installations with limited vertical space. Central Through-Hole: Enables axial load measurement around shafts, bolts, or tie rods. High Capacity Range: Typically available from a few kilograms to several tons. High Accuracy: Suitable for precision force measurement applications. Robust Construction: Made from durable materials to withstand harsh environments. Multiple Mounting Options: Flat, recessed, or flanged designs available for diverse applications. Applications of Ring Type Load Cells Ring type load cells are used across various industries due to their unique shape and versatility. Common applications include: 1. Bolt Force Measurement These sensors are widely used to monitor preload forces in bolts, ensuring that fastening systems are tightened to the correct specifications. By placing the load cell under the bolt head or nut, accurate clamping force can be monitored in real time. 2. Press Force Monitoring In hydraulic and mechanical presses, ring load cells are mounted to measure compressive forces during forming, stamping, or molding processes. 3. Automotive Component Testing Ring load cells are frequently used in automotive R&D for testing components such as suspension systems, engine mounts, and transmission parts under load. 4. Material Testing Machines Used in tensile and compressive testing systems to measure force applied to various materials and components. 5. Industrial Automation In robotics and automated production lines, ring load cells help monitor pressing, clamping, and assembling forces, enhancing quality control and safety. 6. Aerospace and Defense Ring load cells support structural testing and force monitoring in aircraft, missiles, and space applications where compact, high-accuracy sensors are crucial. Benefits of Using a Ring Type Load Cell ✔️ Space-Saving Design Thanks to the central hole and low-profile structure, ring load cells are ideal for compact systems where vertical space is limited. ✔️ Direct Axial Force Measurement Unlike traditional load cells, ring types allow for accurate measurement of axial compression directly around bolts or rods. ✔️ High Accuracy and Repeatability Modern ring load cells provide precise, repeatable measurements, making them suitable for critical quality control applications. ✔️ Wide Range of Capacities Whether for lightweight applications or heavy-duty industrial systems, ring load cells come in a wide variety of capacity ranges. ✔️ Durable in Harsh Environments With stainless steel construction and optional environmental sealing (IP65, IP67, or higher), these sensors are designed for rugged use. Important Considerations When Choosing a Ring Load Cell When selecting a ring type load cell, consider the following factors to ensure optimal performance and integration: 1. Load Capacity Choose a sensor that fits your expected load range. A margin of 20–30% above your maximum load is generally recommended to avoid overload damage. 2. Inner Diameter The central hole size should be large enough to accommodate bolts or rods while maintaining proper force distribution. 3. Outer Diameter and Height These dimensions are critical for space-constrained applications. Make sure the load cell fits your mechanical layout. 4. Mounting Configuration Some ring load cells include mounting holes or flanges; others require custom fixturing. Ensure compatibility with your equipment. 5. Output Signal Standard output is mV/V (millivolts per volt), but many models are available with integrated signal conditioners for analog (4–20 mA, 0–10 V) or digital (USB, RS-485) output. 6. Environmental Conditions If the application involves high temperature, humidity, dust, or chemical exposure, select a load cell with appropriate IP rating and corrosion-resistant materials. 7. Calibration Look for load cells that are factory-calibrated with NIST-traceable certificates, especially if used in regulated or quality-sensitive industries. Calibration and Maintenance Regular calibration is essential for maintaining accuracy. It's recommended to calibrate ring load cells: Upon initial installation After exposure to overload or impact Periodically (every 6–12 months, depending on use) Routine maintenance includes: Inspecting for physical damage or corrosion Checking for cable integrity Verifying zero-load signal and drift ring type load cell donut load cell sensor through-hole load cell compression load cell with center hole ring force sensor axial compression load cell bolt force measurement sensor stainless steel ring load cell low-profile compression sensor high-capacity ring load cell Incorporating these keywords naturally within headings, meta descriptions, alt texts, and throughout your content can improve search engine visibility. Conclusion Ring type load cells are indispensable tools for compact, high-accuracy force measurement in compression applications. Their unique donut shape allows them to measure axial loads directly through a central hole, making them especially valuable in applications like bolt force monitoring, press control, and structural testing. With a wide range of sizes, capacities, and output options, ring load cells offer engineers and designers a reliable solution for many force sensing challenges. When chosen and installed correctly, they deliver long-term precision, reliability, and integration flexibility across industries. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

In modern industrial and scientific settings, precision measurement of force and weight is vital. One of the key tools in achieving such precision is the inline load cell—a type of force transducer designed for compact, high-accuracy force measurement applications. Inline load cells are essential in environments where accurate tension and compression force data is required without compromising on space or robustness. This article explores what inline load cells are, how they work, their applications, advantages, and important considerations when selecting one for your specific needs. What is an Inline Load Cell? An inline load cell, also referred to as an inline force sensor, is a type of load cell designed to be installed directly in line with the force path. Unlike platform load cells or beam load cells that are often mounted beneath surfaces or on support structures, inline load cells are typically cylindrical and are used in applications where the force is applied along the axis of the sensor. They are commonly used for tension and compression measurements, and because of their compact, inline form factor, they are ideal for applications with limited installation space or where axial force measurement is required with minimal mechanical complexity. Working Principle of Inline Load Cells Most inline load cells operate based on strain gauge technology. Here's how it works: Strain Gauges: A strain gauge is a sensor whose resistance changes when it is stretched or compressed. Inline load cells typically have multiple strain gauges arranged in a Wheatstone bridge configuration. Deformation Under Load: When a force is applied to the load cell, the internal structure (usually made of stainless steel or aluminum) deforms slightly. Electrical Signal Output: The strain gauges detect this deformation and convert it into a change in electrical resistance. This resistance change is converted into a voltage signal, which can then be amplified and interpreted as a force measurement. Some advanced models may use piezoelectric or capacitive sensing, but strain gauge-based systems remain the most common due to their reliability and cost-effectiveness. Key Features of Inline Load Cells Inline load cells are specifically designed for high-accuracy and durability in demanding conditions. Some common features include: High Capacity Range: Available in ranges from a few Newtons to hundreds of kilonewtons. Compact Design: Slim, cylindrical bodies that fit inline with test fixtures and machinery. Bidirectional Measurement: Can measure both tension and compression forces. High Accuracy: Typically offer full-scale accuracy within 0.1% or better. Robust Construction: Made from stainless steel or aerospace-grade aluminum for high durability. Applications of Inline Load Cells Inline load cells are used in a wide range of industries, including: 1. Industrial Automation In automated manufacturing processes, force feedback is essential for controlling robotic arms, stamping machines, and assembly presses. Inline load cells provide real-time data on the forces being applied, improving product quality and operational safety. 2. Materials Testing Tensile and compressive material testing often requires highly accurate force measurement. Inline load cells are integral components of testing machines used to evaluate the strength and elasticity of materials like metals, plastics, and composites. 3. Aerospace and Automotive In these sectors, precision is non-negotiable. Inline load cells are used to measure component loads, simulate real-world stresses during design validation, and monitor mechanical systems in real time. 4. Medical Devices Applications in prosthetics, surgical robotics, and rehabilitation equipment often use miniature inline load cells to monitor applied forces without adding significant bulk or weight. 5. Robotics Force feedback in robotic joints or grippers enhances performance and allows for more sensitive, adaptive motion. Inline load cells help robots understand how much force they are applying, which is crucial for handling delicate or variable loads. 6. Research and Development Labs frequently use inline load cells to monitor forces during experiments, structural tests, or prototype evaluations. Their small size and high accuracy make them perfect for confined or controlled environments. Advantages of Using Inline Load Cells 1. Space Efficiency Their compact, inline configuration makes them ideal for applications with tight space constraints. This is especially useful in retrofitting existing systems or integrating sensors into compact mechanical assemblies. 2. Direct Force Path Measurement Inline load cells measure force directly along the axis, reducing errors due to off-axis loading or structural deflection. This leads to more accurate and consistent data. 3. High Load Capacity Despite their small size, many inline load cells can handle high forces, making them suitable for both micro and heavy-duty applications. 4. Versatility They can measure both static and dynamic forces and are compatible with various mounting configurations, including threaded mounts, rod ends, and clevises. 5. Durability With rugged materials and sealed construction, many inline load cells are designed for harsh environments, offering resistance to moisture, dust, and vibration. Important Considerations When Selecting an Inline Load Cell Choosing the right inline load cell depends on several factors: 1. Load Range Select a load cell with a capacity slightly higher than your maximum expected force. Overloading can permanently damage the sensor or reduce its accuracy. 2. Direction of Force Determine whether you need to measure tension, compression, or both. Some load cells are unidirectional, while others are bidirectional. 3. Environment Consider exposure to temperature extremes, water, chemicals, or vibration. Look for models with appropriate IP ratings and environmental sealing. 4. Mounting Requirements Ensure compatibility with your mechanical setup. Inline load cells often come with threaded ends, flanges, or eye bolts for easy integration. 5. Output Signal Decide between analog output (e.g., mV/V, 4-20mA) or digital options (e.g., USB, RS-485). Some systems also include built-in signal conditioning. 6. Calibration High-precision applications may require NIST-traceable calibration certificates. Regular calibration ensures accuracy over time. Maintenance and Calibration Proper maintenance ensures long-term accuracy and performance: Routine Calibration: Inline load cells should be calibrated periodically using certified weights or comparison against a standard. Inspect for Damage: Check for mechanical wear, cable damage, or corrosion, especially in outdoor or industrial settings. Avoid Overload: Use overload protection or mechanical stops if accidental force spikes are possible. Conclusion Inline load cells are indispensable tools in a wide range of industries, offering high accuracy, compact design, and direct measurement capabilities. Their ability to measure axial forces with precision makes them ideal for both dynamic and static applications—from automation and robotics to research and materials testing. Whether you're designing a complex test rig or integrating force measurement into an existing system, understanding the features, benefits, and considerations of inline load cells ensures you get the most out of your instrumentation investment. As industries continue to push the boundaries of innovation and precision, inline load cells will remain central to safe, efficient, and high-performance systems. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

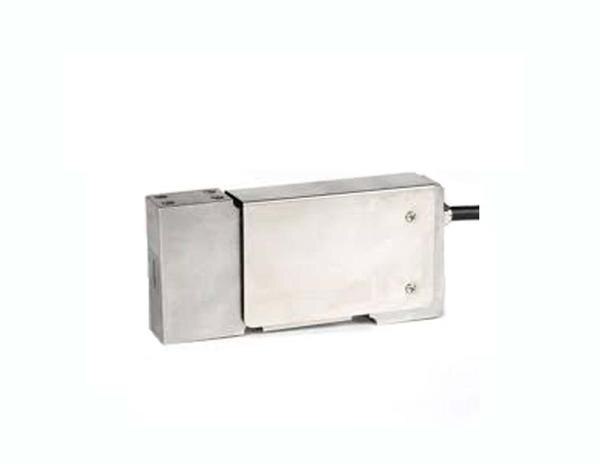

In the intricate world of industrial measurement and control, few components hold as much quiet significance as the load cell. These unassuming transducers form the bedrock of countless weighing systems, material testing machines, and force measurement applications, translating physical force into a quantifiable electrical signal. Among the myriad designs and specifications available, the “60048 load cell” likely refers to a specific model or series within a manufacturer's lineup, embodying a particular set of characteristics tailored for certain operational demands. While without a precise manufacturer and model number, a detailed technical breakdown of the 60048 is impossible, we can explore the common features, applications, and critical considerations surrounding a generic load cell of this presumed designation, aiming for a comprehensive understanding of its role and importance within the 1000-word scope. At its core, a load cell like the 60048 operates on the principle of strain gauges. These delicate, precisely manufactured resistive elements are bonded to a specially machined metal body, often referred to as the “spring element” or “flexure.” When an external force is applied to the load cell, the spring element deforms microscopically. This deformation, or strain, causes a proportional change in the electrical resistance of the strain gauges. Typically, four strain gauges are arranged in a Wheatstone bridge configuration. This ingenious circuit amplifies the tiny resistance changes, converting them into a measurable voltage output that is directly proportional to the applied load. The 60048, by its very numerical designation, suggests a product with a specific part number, implying a defined capacity, accuracy class, material construction, and potentially unique features. Assuming it's a commonly encountered industrial load cell, it would likely fall into one of the prevailing design types: Bending Beam Load Cells: Characterized by a rectangular or square profile, these are widely used for platform scales, tank weighing, and general industrial applications. The 60048 could be a bending beam, offering good accuracy and robustness. Shear Beam Load Cells: Similar in appearance to bending beams but designed to measure shear forces, they are often found in low-profile scales and process weighing. Single Point Load Cells: Designed for direct mounting under a platform, eliminating the need for complex corner adjustments. If the 60048 is a single-point, it would be ideal for compact weighing solutions. Compression Load Cells: Built to withstand compressive forces, these are often cylindrical or canister-shaped and used in heavy-duty applications like truck scales or press force measurement. S-Type Load Cells: Recognizable by their distinctive “S” shape, these are versatile for both tension and compression applications, common in hoist and crane weighing. The specific type of the 60048 would dictate its optimal application. Regardless of its internal design, several critical parameters define the performance and suitability of any load cell, including our hypothetical 60048: Rated Capacity: This is the maximum load the 60048 is designed to measure accurately without damage. This would be a crucial specification, ranging from a few kilograms to hundreds of tons depending on the intended use. Accuracy Class/Error: Load cells are classified based on their accuracy, often expressed as a percentage of the rated output (e.g., C3, C4 per OIML R60 recommendations). A highly accurate 60048 would be crucial for legal-for-trade applications or precision manufacturing. Key error sources include non-linearity, hysteresis, creep, and temperature effect on zero and span. Material Construction: The body of the 60048 could be constructed from various materials, each offering different properties. Stainless steel is common for its corrosion resistance, especially in harsh environments (food processing, chemical industries). Alloy steel provides high strength and is often nickel-plated for some corrosion protection. Aluminum is used for lighter capacity and cost-effective solutions. The environment in Kathwada, Gujarat, with its potentially humid climate, might necessitate a corrosion-resistant material. Environmental Protection (IP Rating): The Ingress Protection (IP) rating indicates the 60048's resistance to dust and water. An IP67 or IP68 rating would be essential for outdoor use or washdown applications, protecting the sensitive internal strain gauges. Output Sensitivity (mV/V): This specifies the electrical output of the load cell per unit of excitation voltage. A typical value is 2 mV/V, meaning that for every volt of excitation, the load cell outputs 2 millivolts at its rated capacity. Operating Temperature Range: The range of temperatures over which the 60048 can operate within its specified accuracy. Mounting Configuration: How the load cell is physically installed. This could involve specific bolt patterns, spherical bearings, or self-aligning feet, all crucial for ensuring proper load application and minimizing side loads that can compromise accuracy. The applications for a 60048 load cell are virtually limitless wherever precise force or weight measurement is required. Consider its potential roles: Industrial Weighing: Platform scales, hopper scales, tank weighing systems, batching systems in industries ranging from food and beverage to chemicals and pharmaceuticals. The 60048 would be a critical component in ensuring accurate ingredient measurement and product consistency. Material Testing: Universal testing machines use load cells to measure tensile, compressive, and flexural strength of materials, vital for quality control and research and development. Process Control: Monitoring force in automated assembly lines, measuring tension in winding applications, or controlling pressure in hydraulic systems. Logistics and Transportation: Truck scales, rail scales, and onboard weighing systems in vehicles to ensure compliance with weight regulations and optimize payload. Medical Devices: Force measurement in rehabilitation equipment, surgical tools, and patient monitoring systems. Agriculture: Silo weighing, livestock scales, and precision farming equipment. The lifecycle of a 60048 load cell involves careful selection, proper installation, regular calibration, and sometimes, troubleshooting. Selecting the right 60048 requires a thorough understanding of the application's maximum load, required accuracy, environmental conditions, and budget. Installation is paramount; misalignment, uneven loading, or the introduction of parasitic forces can significantly degrade performance. Regular calibration against known standards is essential to maintain accuracy over time, compensating for minor material creep or environmental shifts. Troubleshooting a 60048 typically involves checking electrical connections, verifying excitation voltage, and looking for signs of mechanical damage or overload. While robust, load cells are not indestructible and can be damaged by shock loads, excessive side forces, or exposure to aggressive chemicals if not adequately protected. In conclusion, while the specific “60048 load cell” remains an unidentifiable product without a manufacturer's context, the principles governing its design, operation, and application are universal to the vast majority of load cells. It represents a vital cog in the machinery of modern industry, enabling precision, efficiency, and safety across an enormous spectrum of applications. Its unassuming exterior belies the sophisticated engineering within, turning the invisible force of weight into a tangible, measurable data point – a silent, enduring workhorse underpinning countless critical processes around the globe. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal.

Square Drive Torque Sensor (Static): Accurate Torque Measurement for Tools and Calibration Introduction In industries where precise torque application is critical—such as automotive, aerospace, and manufacturing—reliable torque measurement tools are essential. One of the most trusted solutions for torque verification, especially for hand tools and torque wrenches, is the Static Square Drive Torque Sensor. Designed for non-rotating (static) torque measurement, square drive torque sensors offer unmatched accuracy and ease of integration for torque tool testing, calibration benches, and quality control systems. In this guide, we’ll explore the working principles, features, applications, and selection criteria of static square drive torque sensors. What is a Static Square Drive Torque Sensor? A Static Square Drive Torque Sensor is a non-rotating torque transducer designed to measure torque when it is applied without continuous rotation—commonly during the tightening or loosening of fasteners. The sensor features a standardized square drive interface (e.g., 1/4“, 3/8”, 1/2“, 3/4”, or 1“) that allows direct connection with torque tools like wrenches and drivers. These sensors are commonly used in torque calibration systems, tool verification stations, and R&D environments, where high-accuracy, bidirectional torque measurement is required. How Does a Square Drive Torque Sensor Work? The square drive torque sensor is based on strain gauge technology, which allows it to accurately measure static or semi-static torque forces. Here’s how it works: Torque Application: Torque is applied via the square drive interface by connecting a manual or powered tool. Shaft Deflection: The applied force causes a slight deformation (torsion) in the sensor’s internal shaft or element. Strain Gauge Response: Strain gauges detect this mechanical deformation and convert it into a change in electrical resistance. Signal Conditioning: The sensor's electronics convert this resistance change into an analog or digital output signal. Data Display: The output is then interpreted by a torque indicator, DAQ system, or calibration software to display the applied torque. Many models support clockwise and counterclockwise measurement, and some include overload protection or integrated displays. Key Features of Static Square Drive Torque Sensors ✅ Square Drive Interface: Standard sizes (e.g., 1/4”, 1/2“, 3/4”, 1“) for direct connection to torque tools. ✅ Static and Semi-Static Measurement: Designed for applications without continuous shaft rotation. ✅ High Accuracy: Typically ±0.1% to ±0.25% of full scale—ideal for calibration labs and QC. ✅ Bidirectional Measurement: Capable of measuring both tightening and loosening torque. ✅ Durable Construction: Made from hardened steel or stainless steel for industrial use. ✅ Multiple Output Options: mV/V, ±10V, 4-20mA, USB, RS-232, or CAN bus depending on the model. ✅ Calibration-Ready: Often supplied with NIST-traceable calibration certificates. Common Applications of Square Drive Torque Sensors 1. Torque Wrench Calibration Square drive torque sensors are integral to torque calibration benches for verifying and adjusting torque wrenches in compliance with ISO 6789 or other standards. 2. Assembly Tool Verification Used in quality control stations to test electric screwdrivers, pulse tools, and manual torque drivers before and after production shifts. 3. R&D and Testing Labs In automotive and aerospace R&D, static torque sensors are used for testing tool consistency, fastener performance, and joint reliability. 4. Production Line Spot Checks In-process torque verification using square drive sensors helps ensure torque traceability and tightening accuracy in manufacturing. 5. Maintenance and Calibration Labs Ideal for service and repair facilities that calibrate or verify tools as part of preventive maintenance. Advantages of Using a Static Square Drive Torque Sensor ✔️ Plug-and-Play Tool Compatibility The square drive design allows direct tool connection without adapters, simplifying setup. ✔️ High Precision for Non-Rotating Loads Ideal for applications that involve controlled torque application without continuous motion. ✔️ Compact and Portable Many sensors are lightweight and compact, making them suitable for both benchtop and mobile calibration kits. ✔️ Custom Ranges and Outputs Available in torque ranges from 0.1 Nm to 2000+ Nm, and can be customized with different electrical outputs for system integration. ✔️ Cost-Effective Calibration Solution Compared to full rotary torque sensors, static square drive models are more affordable for low-duty cycle or manual tool testing environments. Selecting the Right Square Drive Torque Sensor To choose the best sensor for your application, consider the following: 1. Torque Range Select a range that suits your tool or test application. Avoid exceeding the full-scale range to prevent sensor damage. 2. Drive Size Match the sensor's square drive to the tool being tested (e.g., 1/4”, 3/8“, 1/2”, 3/4“, or 1”). 3. Accuracy Requirements High-precision environments (like calibration labs) may need sensors with <±0.1% full-scale error. 4. Output Signal Type Choose a compatible signal for your data acquisition system (mV/V for direct strain gauge readout, or USB/analog for plug-and-play use). 5. Mounting and Setup Ensure the sensor fits your bench or calibration fixture. Some models come with baseplates or mounting accessories. 6. Certifications and Calibration Look for models with NIST-traceable certificates and ISO-compliant documentation for quality systems. Calibration and Maintenance Regular Calibration: To ensure accuracy, recalibrate sensors every 6–12 months, depending on usage. Avoid Overload: Use overload protection or load-limiting adapters when testing high-torque tools. Keep Connectors Clean: Protect electrical connections from dust, oil, or mechanical stress. Zero Adjustment: Always reset to zero before each test to remove drift or offset. Conclusion Static square drive torque sensors are the go-to solution for precise, non-rotating torque measurements in tool calibration, quality assurance, and research settings. With their easy-to-use square drive interface, robust construction, and exceptional accuracy, they offer a reliable and efficient method for maintaining torque tool integrity across industries. Whether you're running a calibration lab or verifying tools on the shop floor, integrating a square drive torque sensor into your process ensures compliance, repeatability, and trust in every fastening operation. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

In industries where rotating machinery is central—such as automotive, aerospace, robotics, and industrial automation—precise torque measurement is critical for performance, safety, and quality control. That’s where rotary torque sensors come into play. Also known as rotating torque transducers, these precision devices are designed to measure torque on a spinning shaft, delivering real-time data critical for testing, diagnostics, and control. This article provides a detailed overview of rotary torque sensors, including their working principle, types, applications, benefits, and factors to consider when selecting the right model for your system. What Is a Rotary Torque Sensor? A rotary torque sensor is a specialized instrument designed to measure the rotational force (torque) transmitted through a spinning shaft or system. Unlike static torque sensors, which measure torque on stationary systems, rotary sensors operate on moving shafts—often at high speeds. These sensors are vital in systems that involve motors, gearboxes, turbines, or any application where understanding rotational force dynamics is essential. Rotary torque sensors convert mechanical torque into an electrical signal that can be measured, displayed, and recorded. How Does a Rotary Torque Sensor Work? Most rotary torque sensors operate using strain gauge technology. Here's how it works: Strain Gauges: These are bonded to a rotating shaft within the sensor. As torque is applied, the shaft deforms slightly. Signal Conditioning: The strain gauges detect this deformation and change their resistance. This change is converted into an electrical signal proportional to the applied torque. Data Transmission: Since the sensor is rotating, special methods are used to transmit the data: Slip Rings: Traditional method using brushes to transfer signals from the rotating shaft to stationary electronics. Rotary Transformers: Use electromagnetic coupling for signal transmission without physical contact. Wireless Telemetry: Modern, contactless option that transmits data wirelessly for high-speed and maintenance-free operation. Output Signal: The signal is typically available in analog (±10V, 4-20mA) or digital formats (RS-485, USB, CAN, etc.), which can be read by DAQ systems, controllers, or displays. Types of Rotary Torque Sensors There are several types of rotary torque sensors based on output method and operational features: 1. Contact-Based (Slip Ring) Torque Sensors Use mechanical slip rings to transfer electrical signals. Economical but require maintenance and are prone to wear over time. 2. Non-Contact (Inductive or Transformer-Based) Torque Sensors Utilize rotary transformers or inductive coupling. Higher reliability and lower maintenance. Suitable for high-speed or continuous rotation. 3. Wireless Rotary Torque Sensors Use telemetry or Bluetooth for signal transmission. No physical contact required. Ideal for difficult-to-access or high-speed rotating applications. Key Features of Rotary Torque Sensors Bidirectional Torque Measurement: Measures both clockwise and counterclockwise torque. High Rotational Speed Capability: Some models operate at speeds over 30,000 RPM. Integrated Speed/Angle Measurement: Many rotary sensors include encoders for RPM and angular position data. Compact, Lightweight Design: Especially important for applications with dynamic motion or limited space. High Accuracy: Precision-class sensors provide accuracy down to ±0.1% of full scale or better. Robust Construction: Often made from stainless steel or aluminum alloys, designed to withstand industrial environments. Applications of Rotary Torque Sensors 1. Automotive Testing Used to evaluate engine output, transmission performance, and drivetrain efficiency. Engineers rely on rotary torque sensors for: Dynamometer testing Electric motor testing Clutch and brake analysis 2. Electric Motor Testing In research, QA, and development of motors for EVs, robotics, or appliances, torque sensors validate motor efficiency and control performance under load. 3. Industrial Automation Monitoring torque on machinery, spindles, or pumps enables predictive maintenance, reduces downtime, and improves process reliability. 4. Aerospace Critical for actuator testing, hydraulic systems, and flight control components where torque must be measured with high precision under dynamic loads. 5. Wind Turbines and Energy Used to monitor generator shafts and turbine rotors, helping improve efficiency and detect mechanical faults in renewable energy systems. 6. Robotics and Mechatronics Advanced robotics requires real-time torque feedback for motion control, adaptive gripping, and haptic feedback systems. Benefits of Rotary Torque Sensors ✅ Real-Time Torque Feedback Instantaneous torque readings allow engineers to monitor and control dynamic systems accurately during operation. ✅ High-Speed Measurement Rotary sensors are designed to function effectively at thousands of RPMs, making them suitable for high-speed motors and turbines. ✅ Increased Accuracy Strain gauge-based rotary torque sensors provide high linearity, low hysteresis, and exceptional repeatability. ✅ Non-Contact Signal Transmission Eliminates signal degradation, reduces wear and tear, and lowers maintenance costs in modern designs. ✅ Multi-Parameter Measurement Many models also provide RPM, angle, and power output in addition to torque, delivering a complete picture of system dynamics. Key Considerations When Choosing a Rotary Torque Sensor 1. Torque Range Select a sensor with a full-scale range slightly above your expected maximum torque. Common ranges include 0–10 Nm up to 10,000+ Nm. 2. Speed Rating (RPM) Ensure the sensor is rated for your system’s operating speed. Exceeding the rated RPM can lead to signal error or mechanical failure. 3. Output Format Depending on your data acquisition system or controller, choose between analog, digital, or wireless output. 4. Power Requirements Check for external vs. internal power supply compatibility. Some telemetry-based models are battery-operated or inductively powered. 5. Environmental Conditions If the application involves high temperature, moisture, dust, or chemicals, opt for an IP65/IP67-rated sensor with suitable material construction. 6. Calibration and Certifications Choose sensors with NIST-traceable calibration certificates for regulated environments or applications requiring traceability. Installation and Maintenance Tips Proper Alignment: Ensure coaxial alignment between the rotary torque sensor and shafts to prevent damage or measurement errors. Use Flexible Couplings: To compensate for misalignment and reduce mechanical stress on the sensor. Regular Inspection: Clean slip rings or verify telemetry function periodically depending on sensor type. Zero Calibration: Perform a zero-torque adjustment before each test cycle to ensure accuracy. Conclusion Rotary torque sensors are essential for accurate torque measurement in rotating machinery, motors, and drive systems. Whether in a laboratory, test bench, or industrial environment, these sensors offer real-time feedback, high-speed operation, and reliable performance under dynamic conditions. When integrated into your system correctly, a rotary torque sensor becomes a powerful tool for improving efficiency, ensuring safety, and driving innovation. From electric motor testing to robotic torque control, they serve as a cornerstone of modern motion analysis. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

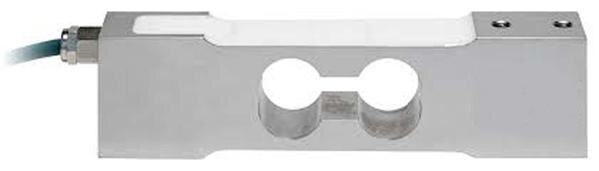

In the intricate world of manufacturing, particularly in industries like food and beverage, pharmaceuticals, and chemicals, precision and efficiency are paramount. Every gram, every millilitre, counts. This is where filling machines, equipped with sophisticated weighing technology, play a critical role. At the heart of many modern filling systems, especially those designed for lighter capacities and rapid operations, lies the often-unsung hero: the aluminium load cell. These compact, yet powerful, sensors are the brains behind accurate gravimeter filling, ensuring product consistency, minimising waste, and ultimately, safeguarding profitability. While other materials like stainless steel offer robust solutions for heavy-duty or corrosive environments, aluminium load cells carve out a significant niche due to their unique combination of properties. The Core Principle: How Load Cells Work in Filling Applications At its essence, a load cell is a transducer that converts a force, typically weight, into an electrical signal. The most common type, and almost universally employed in filling machines, is the strain gauge load cell. These operate on the principle of elastic deformation. When a load (the product being filled) is applied to the load cell, its internal metallic structure undergoes a minute, elastic deformation. Bonded to this structure are strain gauges – thin metallic foils whose electrical resistance changes proportionally with the strain (deformation). These strain gauges are typically arranged in a Wheatstone bridge circuit. As the resistance of the strain gauges changes, the electrical balance of the bridge is disturbed, producing a measurable voltage output. This tiny voltage signal, usually in millivolts, is then amplified and processed by a weighing indicator or controller, converting it into a discernible weight reading. In a filling machine, this process is dynamic. The load cell continuously monitors the weight of the container on the filling station. Before filling, the tare weight (weight of the empty container) is measured. As the product is dispensed, the load cell precisely measures the increasing weight. When the target weight is reached, the controller signals the filling nozzle to close, ensuring consistent and accurate fills. Why Aluminum for Filling Machines? Aluminum load cells offer several distinct advantages that make them particularly well-suited for a wide range of filling machine applications: Weight Sensitivity and High Resolution: Aluminum, being a lighter and more flexible material compared to steel, allows for the design of load cells with higher sensitivity. This is crucial for achieving high resolution and accuracy in filling applications, especially for smaller fill volumes where even tiny variations can represent a significant percentage error. The inherent elasticity of aluminum ensures a good signal-to-noise ratio, enabling precise measurement of minute weight changes. Rapid Response Time and High-Speed Filling: In high-speed filling lines, settling time is critical. This is the time it takes for the load cell to stabilize and provide an accurate reading after a load is applied or removed. Aluminum load cells, with their lower mass and excellent elastic properties, tend to have significantly faster settling times than their heavier steel counterparts. This allows for quicker dispense cycles and increased throughput, directly impacting production efficiency. For instance, in rotary filling machines, specialized aluminum load cells with patented damping systems can dramatically reduce settling times, allowing for higher machine speeds without loss of accuracy and handling centrifugal forces with minimal effect on output. Cost-Effectiveness: Generally, aluminum load cells are more economical to manufacture than stainless steel alternatives. This makes them an attractive option for original equipment manufacturers (OEMs) of filling machines, allowing them to offer competitive pricing without compromising on performance for many applications. Corrosion Resistance (with caveats): While not as universally corrosion-resistant as stainless steel, aluminum alloys can offer good resistance to many common chemicals and environments found in filling operations, particularly when anodized or coated. However, for highly corrosive or washdown-intensive environments, careful material selection and protective measures are still essential. Compact Design: Aluminum's strength-to-weight ratio allows for the creation of compact and lightweight load cell designs. This is advantageous in filling machines where space can be limited, enabling more streamlined machine designs and easier integration. Temperature Stability (with compensation): Like all load cells, aluminum load cells are affected by temperature fluctuations. However, manufacturers employ sophisticated temperature compensation techniques during the design and calibration process to minimize these effects, ensuring stable and accurate readings across a specified operating temperature range. Types of Aluminum Load Cells Common in Filling Applications Several common geometries of aluminum load cells are utilized in filling machines: Single-Point Load Cells: These are often used in bench scales, check weighers, and smaller filling machines. They are designed to be relatively insensitive to off-center loading, meaning the weight can be placed anywhere on the platform without significantly affecting the reading. This simplifies mechanical design and installation in filling applications. Bending Beam Load Cells: Frequently employed in small-to-medium capacity filling and dosing systems, these load cells measure the bending stress caused by an applied load. They are often used in groups of two, three, or four in parallel for larger platforms or hoppers to distribute the load evenly and ensure accuracy. S-Type (S-Beam) Load Cells: While commonly available in stainless steel, aluminum S-type load cells are also used in certain filling applications for both tension and compression measurements, particularly when a hanging or suspended weighing mechanism is required. Key Considerations for Selection and Implementation Choosing the right aluminum load cell for a filling machine involves several critical factors: Capacity: The load cell's rated capacity must exceed the maximum expected load, including the container, the product, and any dynamic forces (e.g., impact during container placement). Overloading can cause permanent damage and loss of accuracy. Accuracy Requirements: The desired accuracy of the filling process dictates the required precision of the load cell. This is often expressed as a percentage of full-scale output (e.g., ±0.05% F.S.). Pharmaceutical and high-value product filling typically demands higher accuracy. Environmental Conditions: Factors such as temperature fluctuations, humidity, dust, and exposure to chemicals must be considered. While aluminum offers some resistance, an appropriate IP (Ingress Protection) rating is crucial to protect the internal electronics from moisture and particulates. Response Time and Settling Time: For high-speed filling, a load cell with a fast response and short settling time is imperative to maximize throughput. Mounting and Installation: Proper mechanical integration is vital for accurate performance. Uneven surfaces, misalignment, or excessive torque can introduce errors. Load cells should be mounted on a stable, rigid structure that isolates them from vibrations. Signal Conditioning and Control: The load cell's raw signal needs proper amplification and conditioning to be processed by the machine's control system. High-quality electronics are essential to minimize noise and ensure stable readings. Calibration: Regular calibration with certified weights is essential to maintain the accuracy of the load cell and the filling machine over time. The frequency of calibration depends on usage, environmental conditions, and regulatory requirements. Maintenance and Troubleshooting Even robust aluminum load cells require proper care to ensure long-term accuracy and reliability. Routine Inspection: Regularly inspect the load cell and its mounting for signs of wear, corrosion, or damage. Check for loose connections or frayed wiring. Cleaning: Keep the load cell and surrounding area clean, free from product spills, dust, and debris. Use appropriate, non-corrosive cleaning agents. Vibration Control: Minimize vibrations from nearby machinery, which can introduce noise into the signal and affect accuracy. Temperature Management: While load cells are temperature compensated, extreme or rapid temperature changes can still affect performance. Maintain a stable ambient temperature where possible. Overload Prevention: Ensure that the filling machine's design includes mechanisms to prevent accidental overloading of the load cells. Professional Calibration: Adhere to a regular calibration schedule performed by qualified technicians. This ensures the load cell's performance remains within specifications and compensates for any long-term drift. The Future of Filling Machine Load Cells The trend in load cell technology for filling applications is towards greater precision, faster response times, and enhanced connectivity. Advancements include: Digital Load Cells: These integrate analog-to-digital conversion directly within the load cell, offering improved signal integrity, greater noise immunity, and often built-in diagnostics. IoT and Predictive Maintenance: Load cells are increasingly being integrated into Industrial IoT (IIoT) ecosystems, allowing for real-time monitoring of performance, remote diagnostics, and predictive maintenance strategies to minimize downtime. Miniaturization: Smaller, more compact load cells are being developed to fit into increasingly sophisticated and space-constrained machine designs. Advanced Materials and Designs: Ongoing research into new aluminum alloys and optimized structural designs continues to push the boundaries of accuracy, durability, and speed. In conclusion, aluminium load cells are indispensable components in a vast array of filling machines, enabling the precise and efficient dispensing of countless products. Their combination of sensitivity, speed, and cost-effectiveness makes them a preferred choice for many applications, and continuous innovation ensures their continued relevance in the evolving landscape of industrial automation and smart manufacturing. As the demand for higher accuracy and faster production grows, the role of these unsung heroes will only become more critical. We are manufacturer and also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

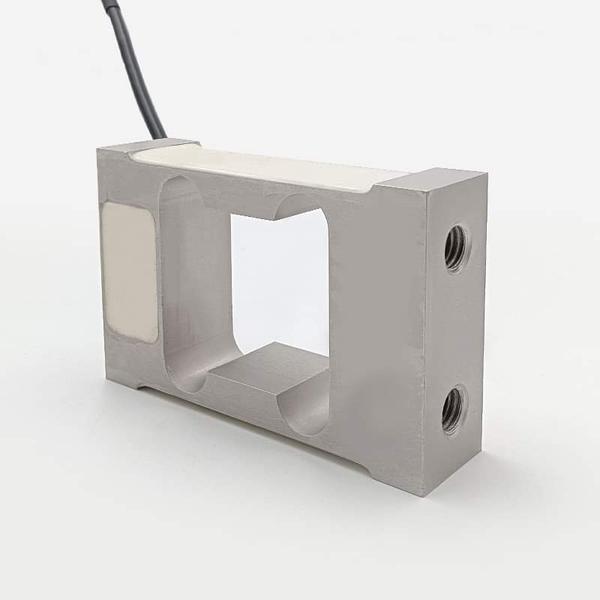

In the intricate world of modern manufacturing, where precision and efficiency reign supreme, packaging machines stand as vital components. From ensuring product integrity to optimizing logistics, their role is indispensable. Yet, the unsung heroes behind much of their accuracy and consistency are humble, often unseen, devices: load cells. These sophisticated transducers convert force into an electrical signal, forming the bedrock of accurate weighing, dosing, and quality control in countless packaging applications. Without them, the carefully calibrated processes that deliver our everyday goods – from a bag of chips to a bottle of medication – would be fraught with error and inefficiency. At its core, a load cell operates on the principle of strain measurement. When a force (weight) is applied to the load cell, its internal structure deforms minutely. This deformation is detected by strain gauges – tiny electrical resistors bonded to the load cell’s body. As the load cell deforms, the resistance of the strain gauges changes proportionally. This change in resistance is then converted into an electrical signal, typically a voltage, which can be measured and interpreted by a control system. The magnitude of this electrical signal directly corresponds to the applied force, providing a highly accurate representation of the weight of the product being packaged. The diversity of packaging operations necessitates a variety of load cell types, each optimized for specific challenges. Single point load cells are perhaps the most common in packaging, particularly for smaller weighing platforms. Their design allows for accurate measurement even when the load is not perfectly centered, making them ideal for checkweighers, filling machines, and bagging equipment. For larger capacities and more robust applications, shear beam load cells and bending beam load cells are frequently employed. Shear beams, often used in tank weighing or platform scales, offer high accuracy and robust construction. Bending beam load cells are versatile and found in a wide array of industrial scales. In situations demanding extremely high precision or resistance to off-center loading, compression load cells or S-type load cells might be utilized. Compression load cells are robust and handle large capacities, while S-type (or S-beam) load cells are known for their compact design and suitability for both tension and compression measurements, making them useful in force measurement applications within packaging machinery. The choice of load cell type is a critical decision, influenced by factors such as the weight range, required accuracy, environmental conditions, and the mechanical design of the packaging machine. The applications of load cells within packaging machines are incredibly broad and impactful. In filling machines, load cells ensure precise dosing of liquids, powders, granules, and even solid items. Whether it's a volumetric filler needing to be calibrated with a known weight, or a gravimetric filler directly weighing each fill, load cells guarantee consistency, minimizing product giveaway and maximizing yield. Checkweighers, arguably one of the most visible applications, rely entirely on load cells to verify that packaged products fall within specified weight tolerances. This prevents under-filled products from reaching consumers and over-filled products from impacting profitability. In bagging machines, load cells accurately weigh the product before it's dispensed into bags, ensuring each bag contains the correct amount. They are also crucial in form-fill-seal machines, where they can monitor the weight of product being delivered into each pouch or container. Beyond these direct weighing applications, load cells play a role in tension control for film unwinding, force measurement in sealing operations, and even level monitoring in hoppers and silos feeding the packaging lines. The benefits of integrating load cells into packaging machines are multifaceted and contribute significantly to a manufacturer's bottom line. Foremost among these is enhanced accuracy. By precisely measuring product weight, load cells drastically reduce product giveaway, directly translating to material cost savings. Conversely, they prevent under-filling, safeguarding brand reputation and ensuring compliance with regulatory standards. This precision also leads to improved product consistency, which is vital for consumer satisfaction and brand loyalty. Increased efficiency is another key advantage. With accurate weight feedback, packaging lines can operate at higher speeds while maintaining quality, leading to greater throughput. Load cells also facilitate real-time quality control, allowing for immediate adjustments if discrepancies are detected, minimizing waste and rework. Furthermore, the data collected from load cells can be used for traceability and process optimization, providing valuable insights into production trends and potential areas for improvement. This data-driven approach supports preventative maintenance and predictive analytics, further enhancing operational uptime. Selecting the right load cell for a packaging machine is a critical decision that requires careful consideration of several factors. The capacity of the load cell must be appropriate for the maximum weight it will measure, with a suitable safety margin. Accuracy and resolution are paramount; the required precision will dictate the quality and cost of the load cell. Environmental factors such as temperature, humidity, and the presence of corrosive agents or washdown procedures (common in food and pharmaceutical packaging) will influence the necessary ingress protection (IP) rating and material construction (e.g., stainless steel). The mounting configuration must be compatible with the machine's design, and the output signal (e.g., mV/V, 4-20mA, 0-10V, or digital protocols like Profibus, Ethernet/IP) needs to integrate seamlessly with the machine's control system (PLC or HMI). Finally, the dynamic response of the load cell is crucial for high-speed applications, ensuring it can accurately measure rapidly changing loads. Maintaining load cells in packaging machines is essential for their continued accuracy and longevity. Regular calibration is the most critical aspect of maintenance, ensuring the load cell continues to provide accurate readings over time. This typically involves using certified test weights to verify and adjust the load cell's output. Inspection for physical damage is also important, as impact or overload can compromise the load cell's integrity. Environmental factors, such as excessive vibration or temperature fluctuations, should be monitored and mitigated. Proper installation with correct mounting hardware and cable routing helps prevent premature failure. In washdown environments, ensuring the integrity of cable glands and seals is vital to prevent water ingress. Adhering to the manufacturer's recommended maintenance schedule and promptly addressing any anomalies in performance will extend the lifespan of the load cells and safeguard the precision of the packaging operation. In conclusion, load cells are far more than mere sensors; they are the silent sentinels of precision and profitability in the packaging industry. Their ability to convert mechanical force into a quantifiable electrical signal underpins the accuracy of weighing, filling, and quality control processes. From ensuring optimal product fill to preventing costly product giveaway, their impact is profound. As packaging demands grow more sophisticated, and the drive for efficiency intensifies, the role of reliable, accurate, and durable load cells will only continue to expand, cementing their status as indispensable components in the automated packaging landscape. We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal.
