Description

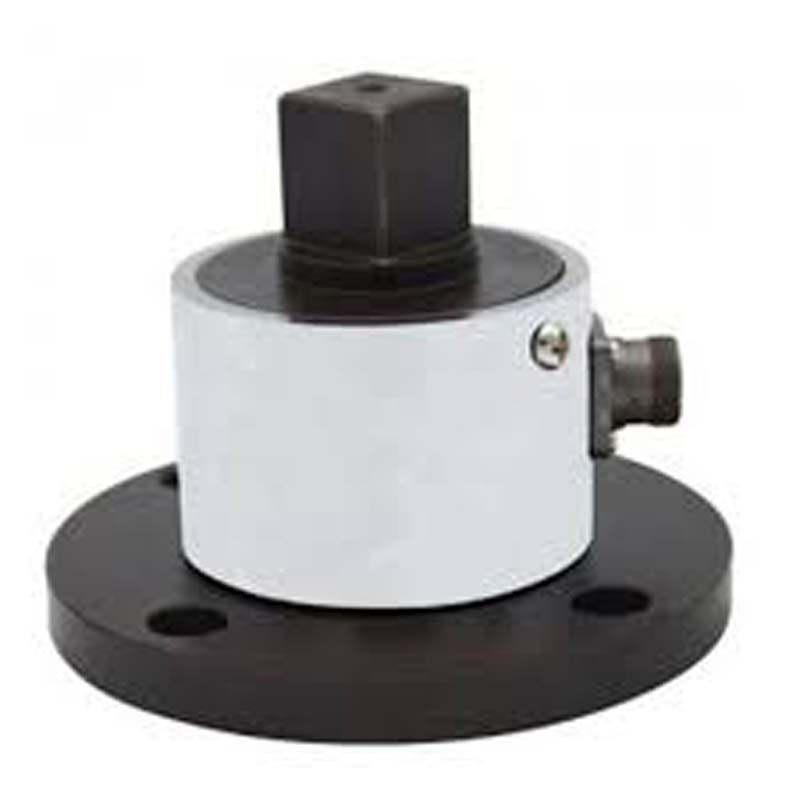

Square Drive Torque Sensor (Static): Accurate Torque Measurement for Tools and Calibration
Introduction
In industries where precise torque application is critical—such as automotive, aerospace, and manufacturing—reliable torque measurement tools are essential. One of the most trusted solutions for torque verification, especially for hand tools and torque wrenches, is the Static Square Drive Torque Sensor.
Designed for non-rotating (static) torque measurement, square drive torque sensors offer unmatched accuracy and ease of integration for torque tool testing, calibration benches, and quality control systems. In this guide, we’ll explore the working principles, features, applications, and selection criteria of static square drive torque sensors.
What is a Static Square Drive Torque Sensor?
A Static Square Drive Torque Sensor is a non-rotating torque transducer designed to measure torque when it is applied without continuous rotation—commonly during the tightening or loosening of fasteners. The sensor features a standardized square drive interface (e.g., 1/4“, 3/8”, 1/2“, 3/4”, or 1“) that allows direct connection with torque tools like wrenches and drivers.
These sensors are commonly used in torque calibration systems, tool verification stations, and R&D environments, where high-accuracy, bidirectional torque measurement is required.
How Does a Square Drive Torque Sensor Work?
The square drive torque sensor is based on strain gauge technology, which allows it to accurately measure static or semi-static torque forces. Here’s how it works:
Torque Application: Torque is applied via the square drive interface by connecting a manual or powered tool.
Shaft Deflection: The applied force causes a slight deformation (torsion) in the sensor’s internal shaft or element.
Strain Gauge Response: Strain gauges detect this mechanical deformation and convert it into a change in electrical resistance.
Signal Conditioning: The sensor's electronics convert this resistance change into an analog or digital output signal.
Data Display: The output is then interpreted by a torque indicator, DAQ system, or calibration software to display the applied torque.
Many models support clockwise and counterclockwise measurement, and some include overload protection or integrated displays.
Key Features of Static Square Drive Torque Sensors
✅ Square Drive Interface: Standard sizes (e.g., 1/4”, 1/2“, 3/4”, 1“) for direct connection to torque tools.
✅ Static and Semi-Static Measurement: Designed for applications without continuous shaft rotation.
✅ High Accuracy: Typically ±0.1% to ±0.25% of full scale—ideal for calibration labs and QC.
✅ Bidirectional Measurement: Capable of measuring both tightening and loosening torque.
✅ Durable Construction: Made from hardened steel or stainless steel for industrial use.
✅ Multiple Output Options: mV/V, ±10V, 4-20mA, USB, RS-232, or CAN bus depending on the model.
✅ Calibration-Ready: Often supplied with NIST-traceable calibration certificates.
Common Applications of Square Drive Torque Sensors
1. Torque Wrench Calibration
Square drive torque sensors are integral to torque calibration benches for verifying and adjusting torque wrenches in compliance with ISO 6789 or other standards.
2. Assembly Tool Verification
Used in quality control stations to test electric screwdrivers, pulse tools, and manual torque drivers before and after production shifts.
3. R&D and Testing Labs
In automotive and aerospace R&D, static torque sensors are used for testing tool consistency, fastener performance, and joint reliability.
4. Production Line Spot Checks
In-process torque verification using square drive sensors helps ensure torque traceability and tightening accuracy in manufacturing.
5. Maintenance and Calibration Labs
Ideal for service and repair facilities that calibrate or verify tools as part of preventive maintenance.
Advantages of Using a Static Square Drive Torque Sensor
✔️ Plug-and-Play Tool Compatibility
The square drive design allows direct tool connection without adapters, simplifying setup.
✔️ High Precision for Non-Rotating Loads
Ideal for applications that involve controlled torque application without continuous motion.
✔️ Compact and Portable
Many sensors are lightweight and compact, making them suitable for both benchtop and mobile calibration kits.
✔️ Custom Ranges and Outputs
Available in torque ranges from 0.1 Nm to 2000+ Nm, and can be customized with different electrical outputs for system integration.
✔️ Cost-Effective Calibration Solution
Compared to full rotary torque sensors, static square drive models are more affordable for low-duty cycle or manual tool testing environments.
Selecting the Right Square Drive Torque Sensor
To choose the best sensor for your application, consider the following:
1. Torque Range
Select a range that suits your tool or test application. Avoid exceeding the full-scale range to prevent sensor damage.
2. Drive Size
Match the sensor's square drive to the tool being tested (e.g., 1/4”, 3/8“, 1/2”, 3/4“, or 1”).
3. Accuracy Requirements
High-precision environments (like calibration labs) may need sensors with <±0.1% full-scale error.
4. Output Signal Type
Choose a compatible signal for your data acquisition system (mV/V for direct strain gauge readout, or USB/analog for plug-and-play use).
5. Mounting and Setup
Ensure the sensor fits your bench or calibration fixture. Some models come with baseplates or mounting accessories.
6. Certifications and Calibration
Look for models with NIST-traceable certificates and ISO-compliant documentation for quality systems.
Calibration and Maintenance
Regular Calibration: To ensure accuracy, recalibrate sensors every 6–12 months, depending on usage.
Avoid Overload: Use overload protection or load-limiting adapters when testing high-torque tools.
Keep Connectors Clean: Protect electrical connections from dust, oil, or mechanical stress.
Zero Adjustment: Always reset to zero before each test to remove drift or offset.
Conclusion
Static square drive torque sensors are the go-to solution for precise, non-rotating torque measurements in tool calibration, quality assurance, and research settings. With their easy-to-use square drive interface, robust construction, and exceptional accuracy, they offer a reliable and efficient method for maintaining torque tool integrity across industries.
Whether you're running a calibration lab or verifying tools on the shop floor, integrating a square drive torque sensor into your process ensures compliance, repeatability, and trust in every fastening operation.
