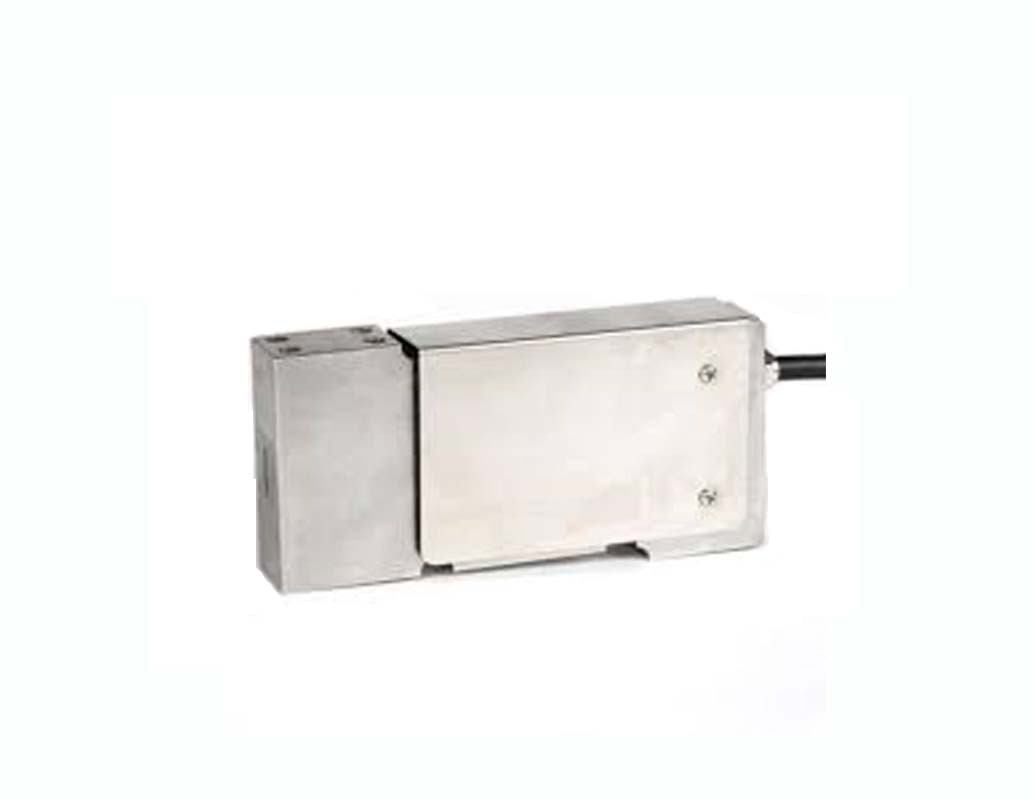

In the intricate world of industrial measurement and control, few components hold as much quiet significance as the load cell. These unassuming transducers form the bedrock of countless weighing systems, material testing machines, and force measurement applications, translating physical force into a quantifiable electrical signal. Among the myriad designs and specifications available, the “60048 load cell” likely refers to a specific model or series within a manufacturer's lineup, embodying a particular set of characteristics tailored for certain operational demands. While without a precise manufacturer and model number, a detailed technical breakdown of the 60048 is impossible, we can explore the common features, applications, and critical considerations surrounding a generic load cell of this presumed designation, aiming for a comprehensive understanding of its role and importance within the 1000-word scope.
At its core, a load cell like the 60048 operates on the principle of strain gauges. These delicate, precisely manufactured resistive elements are bonded to a specially machined metal body, often referred to as the “spring element” or “flexure.” When an external force is applied to the load cell, the spring element deforms microscopically. This deformation, or strain, causes a proportional change in the electrical resistance of the strain gauges. Typically, four strain gauges are arranged in a Wheatstone bridge configuration. This ingenious circuit amplifies the tiny resistance changes, converting them into a measurable voltage output that is directly proportional to the applied load.
The 60048, by its very numerical designation, suggests a product with a specific part number, implying a defined capacity, accuracy class, material construction, and potentially unique features. Assuming it's a commonly encountered industrial load cell, it would likely fall into one of the prevailing design types:
Bending Beam Load Cells: Characterized by a rectangular or square profile, these are widely used for platform scales, tank weighing, and general industrial applications. The 60048 could be a bending beam, offering good accuracy and robustness.
Shear Beam Load Cells: Similar in appearance to bending beams but designed to measure shear forces, they are often found in low-profile scales and process weighing.
Single Point Load Cells: Designed for direct mounting under a platform, eliminating the need for complex corner adjustments. If the 60048 is a single-point, it would be ideal for compact weighing solutions.
Compression Load Cells: Built to withstand compressive forces, these are often cylindrical or canister-shaped and used in heavy-duty applications like truck scales or press force measurement.
S-Type Load Cells: Recognizable by their distinctive “S” shape, these are versatile for both tension and compression applications, common in hoist and crane weighing.
The specific type of the 60048 would dictate its optimal application. Regardless of its internal design, several critical parameters define the performance and suitability of any load cell, including our hypothetical 60048:
Rated Capacity: This is the maximum load the 60048 is designed to measure accurately without damage. This would be a crucial specification, ranging from a few kilograms to hundreds of tons depending on the intended use.
Accuracy Class/Error: Load cells are classified based on their accuracy, often expressed as a percentage of the rated output (e.g., C3, C4 per OIML R60 recommendations). A highly accurate 60048 would be crucial for legal-for-trade applications or precision manufacturing. Key error sources include non-linearity, hysteresis, creep, and temperature effect on zero and span.
Material Construction: The body of the 60048 could be constructed from various materials, each offering different properties. Stainless steel is common for its corrosion resistance, especially in harsh environments (food processing, chemical industries). Alloy steel provides high strength and is often nickel-plated for some corrosion protection. Aluminum is used for lighter capacity and cost-effective solutions. The environment in Kathwada, Gujarat, with its potentially humid climate, might necessitate a corrosion-resistant material.
Environmental Protection (IP Rating): The Ingress Protection (IP) rating indicates the 60048's resistance to dust and water. An IP67 or IP68 rating would be essential for outdoor use or washdown applications, protecting the sensitive internal strain gauges.
Output Sensitivity (mV/V): This specifies the electrical output of the load cell per unit of excitation voltage. A typical value is 2 mV/V, meaning that for every volt of excitation, the load cell outputs 2 millivolts at its rated capacity.
Operating Temperature Range: The range of temperatures over which the 60048 can operate within its specified accuracy.
Mounting Configuration: How the load cell is physically installed. This could involve specific bolt patterns, spherical bearings, or self-aligning feet, all crucial for ensuring proper load application and minimizing side loads that can compromise accuracy.
The applications for a 60048 load cell are virtually limitless wherever precise force or weight measurement is required. Consider its potential roles:
Industrial Weighing: Platform scales, hopper scales, tank weighing systems, batching systems in industries ranging from food and beverage to chemicals and pharmaceuticals. The 60048 would be a critical component in ensuring accurate ingredient measurement and product consistency.
Material Testing: Universal testing machines use load cells to measure tensile, compressive, and flexural strength of materials, vital for quality control and research and development.
Process Control: Monitoring force in automated assembly lines, measuring tension in winding applications, or controlling pressure in hydraulic systems.
Logistics and Transportation: Truck scales, rail scales, and onboard weighing systems in vehicles to ensure compliance with weight regulations and optimize payload.
Medical Devices: Force measurement in rehabilitation equipment, surgical tools, and patient monitoring systems.
Agriculture: Silo weighing, livestock scales, and precision farming equipment.
The lifecycle of a 60048 load cell involves careful selection, proper installation, regular calibration, and sometimes, troubleshooting. Selecting the right 60048 requires a thorough understanding of the application's maximum load, required accuracy, environmental conditions, and budget. Installation is paramount; misalignment, uneven loading, or the introduction of parasitic forces can significantly degrade performance. Regular calibration against known standards is essential to maintain accuracy over time, compensating for minor material creep or environmental shifts.
Troubleshooting a 60048 typically involves checking electrical connections, verifying excitation voltage, and looking for signs of mechanical damage or overload. While robust, load cells are not indestructible and can be damaged by shock loads, excessive side forces, or exposure to aggressive chemicals if not adequately protected.
In conclusion, while the specific “60048 load cell” remains an unidentifiable product without a manufacturer's context, the principles governing its design, operation, and application are universal to the vast majority of load cells. It represents a vital cog in the machinery of modern industry, enabling precision, efficiency, and safety across an enormous spectrum of applications. Its unassuming exterior belies the sophisticated engineering within, turning the invisible force of weight into a tangible, measurable data point – a silent, enduring workhorse underpinning countless critical processes around the globe.
We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal.
