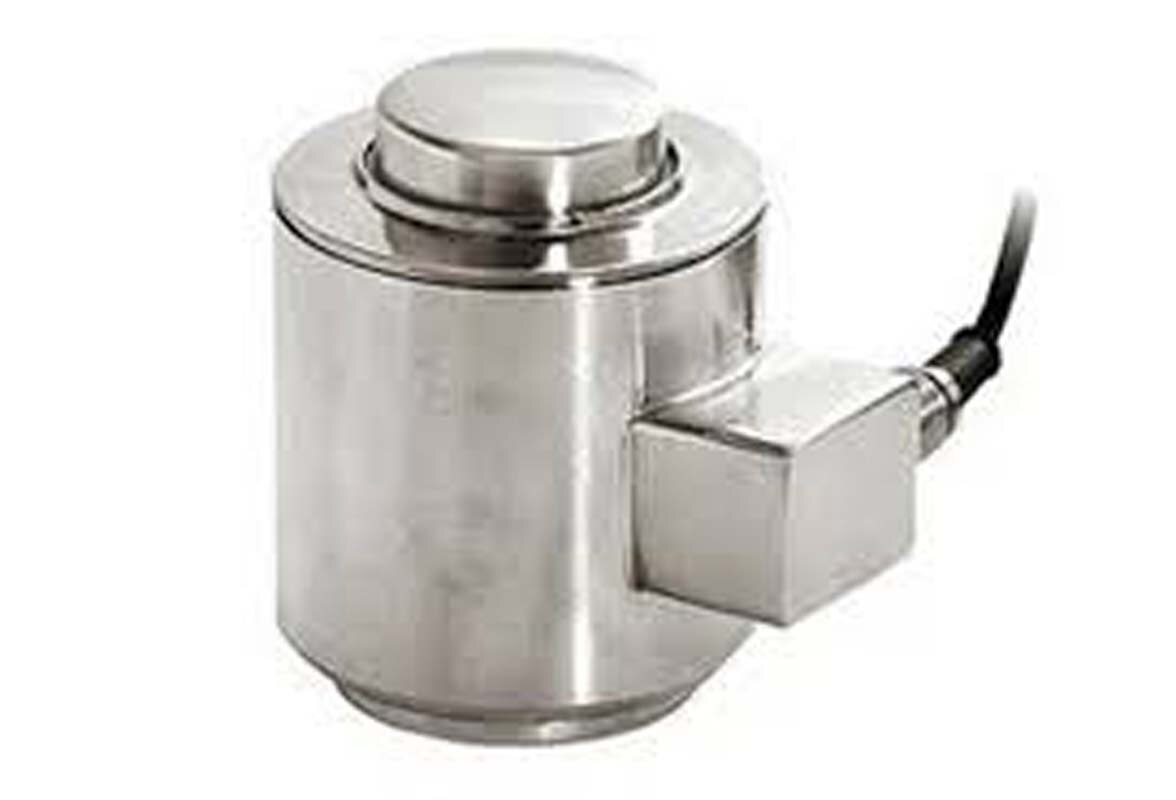

What Is a Multicolumn Load Cell?
A multicolumn load cell is a type of force sensor that uses multiple parallel columns to bear and measure heavy compressive loads. These load cells are designed to handle extremely high capacities—ranging from tens to thousands of tons—with high accuracy and reliability.
Unlike single-column or shear beam load cells, multicolumn load cells distribute the force across several columns. This structural configuration minimizes deformation, reduces stress concentrations, and improves measurement stability.
How Does a Multicolumn Load Cell Work?
Multicolumn load cells operate on the principle of strain gauge technology. Each column in the load cell is instrumented with strain gauges that detect minute changes in length as force is applied. These changes in resistance are converted into an electrical signal that can be measured and calibrated to represent the exact force applied.
The use of multiple columns ensures that the load is evenly distributed, which enhances linearity, repeatability, and overall performance under high-stress conditions.
Key Features of Multi column Load Cells
High Capacity
Multi column load cells are engineered to handle extremely large forces, often exceeding 1000 kN or even 5000 kN in custom applications.
Robust Construction
Typically made from stainless steel or high-grade alloy, these load cells are built for durability in demanding environments.
Superior Accuracy
Their design minimizes off-axis loading effects, ensuring precise and repeatable readings even under fluctuating conditions.
Environmental Resistance
Many multi column load cells are sealed to IP67 or IP68 standards, allowing them to perform reliably in harsh conditions like dust, moisture, or temperature extremes.
Fatigue Resistance
Designed for long-term use under cyclic loading, these load cells can withstand millions of load cycles without degradation in performance.
Applications of Multi column Load Cells
1. Heavy Machinery Testing
Multi column load cells are widely used in testing the structural integrity of cranes, hoists, and other heavy machinery. Their ability to withstand high loads makes them ideal for verifying maximum capacity and stress points.
2. Aerospace and Defence
In aerospace testing labs, multi column load cells measure the forces involved in aircraft landing gear, fuselage stress testing, and engine thrust assessments.
3. Automotive Crash and Durability Testing
The automotive industry relies on these load cells for component stress analysis, frame testing, and crash simulations.
4. Material and Structural Testing
Testing concrete, steel beams, and composite materials under compression or tensile loads requires reliable and precise sensors like multi column load cells.
5. Hydraulic and Mechanical Presses
They are commonly integrated into press machines to monitor and control the amount of force being applied during forming, stamping, or forging processes.
Benefits of Using a Multi column Load Cell
✔ High Load Capacity
Multi column load cells are ideal for measuring loads that exceed the capabilities of traditional single-element load cells.
✔ Stability and Repeatability
With multiple load-bearing columns, these sensors offer unmatched stability even under continuous or cyclic loading.
✔ Versatility
Available in a wide range of capacities and configurations, they can be customised to suit unique industrial applications.
✔ Enhanced Safety
Accurate force measurement ensures operational safety, especially when used in critical load monitoring systems.
✔ Long-Term Reliability
Designed to operate over millions of cycles, they are suitable for long-term, maintenance-free use.
Choosing the Right Multi column Load Cell
When selecting a multi column load cell for your application, consider the following factors:
Capacity Range: Choose a load cell with a capacity that matches or exceeds your maximum expected load.
Accuracy Class: Depending on your application, you may need higher precision (e.g., 0.05% FS for lab testing).
Environmental Conditions: Look for IP-rated cells if the application involves dust, water, or temperature variations.
Mounting Requirements: Ensure compatibility with your test rig or system’s design.
Signal Output Type: Common options include mV/V, 4-20mA, or digital output for easy integration with control systems.
Multi column Load Cell vs Other Types
Load Cell Type Load Capacity Accuracy Best For
Multi column Very High High Heavy-duty and high-capacity testing
Shear Beam Medium Medium Industrial scales, tank weighing
S-type Low to Medium High Tension/compression in smaller ranges
Single-Point Low Medium Small scales, retail applications
Maintenance and Calibration
Multi column load cells are generally low-maintenance but require periodic calibration to ensure long-term accuracy. Calibration should be performed by certified technicians using traceable weights or hydraulic calibration systems.
Tips for Prolonged Load Cell Life:
Avoid exceeding the rated capacity.
Protect against side and impact loads.
Use overload protection mechanisms.
Regularly inspect mounting hardware and electrical connections.
Conclusion
A multi column load cell is a highly reliable and accurate force measurement device engineered for large-scale, high-capacity applications. Its multi-column architecture offers exceptional durability, load handling, and resistance to environmental factors. From aerospace to structural testing and heavy manufacturing, these load cells provide the precision and performance required in mission-critical environments.
Whether you're looking to upgrade your testing setup or need reliable data from high-load operations, multi column load cells are a sound investment in measurement accuracy and system safety.
