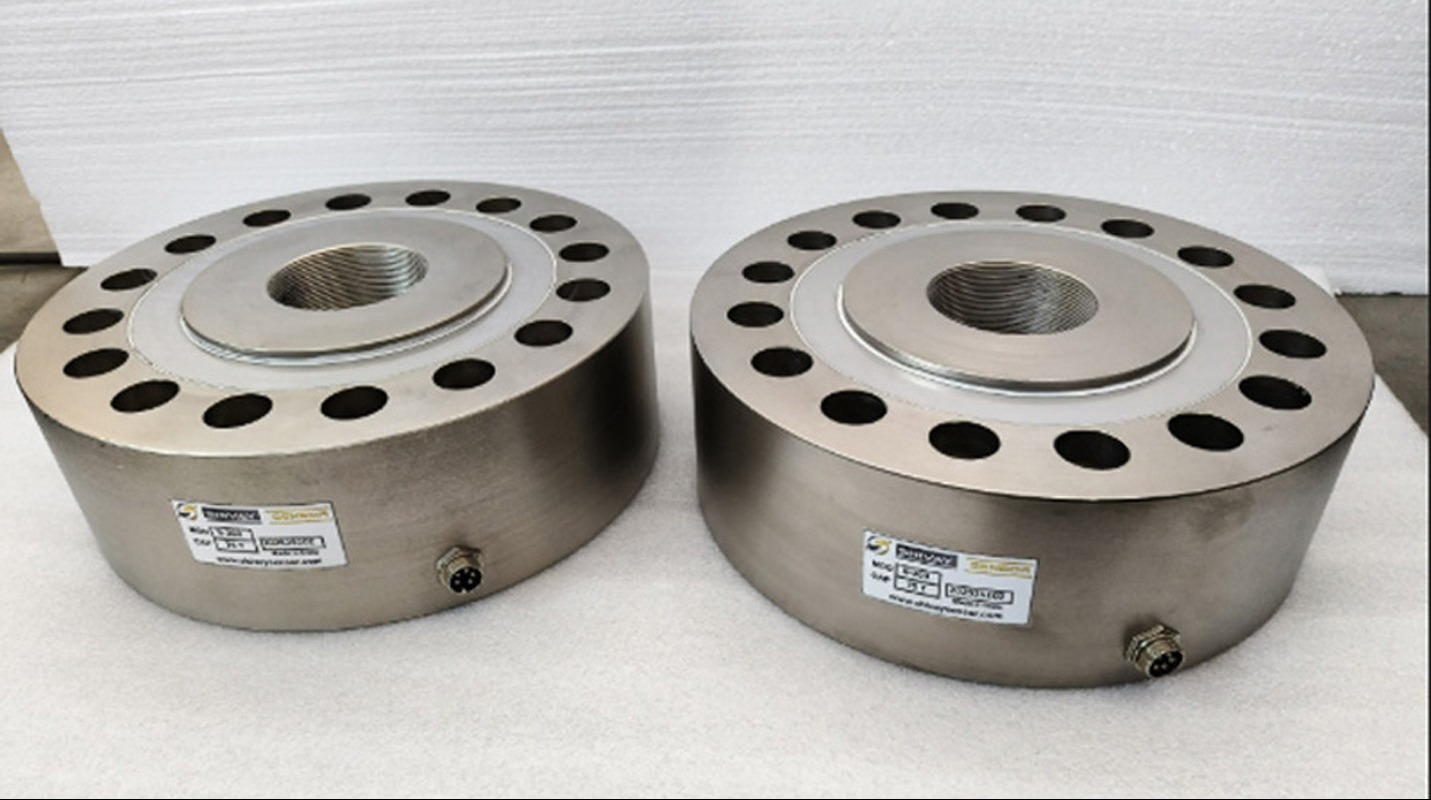

Heavy Duty Pancake Type Load Cells: High Accuracy & Fatigue Rated

In high-capacity industrial testing, actuator calibration, and hydraulic press monitoring, standard beam load cells often suffer from bending moments and structural fatigue. Heavy-duty pancake load cells (also known as low-profile or shear-web load cells) solve this through an ultra-low aspect ratio, symmetrical multi-shear design, and exceptional resistance to extraneous side loads.

Whether operating in cyclical dynamic fatigue environments or static material test frames, these transducers deliver millivolt-level stability and high linearity across tens of millions of loading cycles.

Key Technical Specifications

ParameterStandard Industrial RatingFatigue-Rated OptionCapacities1 Ton to 200+ Ton (10 kN to 2000 kN)5 kN to 1000 kNRated Output (Sensitivity)2.0 mV/V to 4.0 mV/V nominal2.0 mV/V ± 0.25%Combined Error (Non-Linearity & Hysteresis)≤ ±0.05% to ±0.1% F.S.≤ ±0.03% to ±0.05% F.S.Fatigue Life$10^6$ cycles (static-rated)$10^7$ to $10^8$ fully reversed cyclesSafe Overload / Ultimate Overload150% / 300% F.S.200% / 400% F.S.Material ConstructionHigh-strength Alloy Steel / 17-4 PH SS17-4 PH Stainless Steel (Hardened)Environmental ProtectionIP67 / Hermetically Sealed IP68Welded Seal / Hermetic IP68

Core Engineering Advantages

• High Extraneous Load Rejection: The internal radial shear-web flexure minimizes crosstalk from side loads, bending moments, and eccentric forces, ensuring true axial measurement.
•

• Tension and Compression Dual Compatibility: Features a threaded central through-hole or female boss, allowing seamless switching between push and pull testing without recalibration errors.
•

• Minimal Deflection & High Natural Frequency: Ultra-rigid construction ensures rapid dynamic response times in automated press-fit stations and servo-hydraulic systems.
•

• Exceptional Fatigue Endurance: Machined from heat-treated billet alloy steel or 17-4 PH stainless steel, low working stresses prevent zero shift even under millions of cyclical loads.

Primary Industrial Applications

• Hydraulic Press & Stamping Verification: Monitoring peak tonnage and preventing tool wear.
•

• Component Fatigue Testing: Dynamic endurance testing of automotive chassis, suspension links, and aerospace fasteners.
•

• Universal Testing Machines (UTM): Serving as primary force reference standards for tensile and compression test rigs.
•

• Structural Proof-Load Testing: Heavy pile loading, bridge pre-stressing, and civil structure foundation verification.

Frequently Asked Questions (FAQ)

What distinguishes a fatigue-rated pancake load cell from a general-purpose model?

Fatigue-rated models are designed with lower allowable mechanical stress limits (typically keeping stress well below the material’s endurance limit) to withstand $10^7$ to $10^8$ fully reversed load cycles without micro-crack initiation or gauge drift.

Can pancake load cells operate in dirty or washdown environments?

Yes. With fully welded covers and glass-to-metal sealed industrial connectors (e.g., MS-style bayonet or potted cable glands), heavy-duty variants achieve IP67 or IP68 ratings for chemical, oil, and outdoor moisture resistance.
