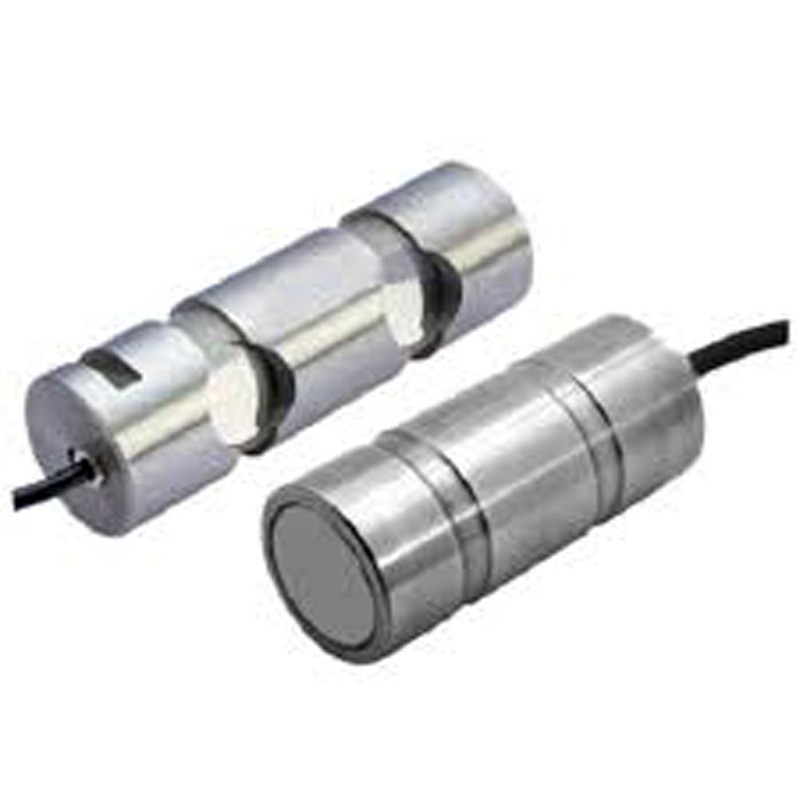

30T / 60T Load Pin Load Cell With In-Built Amplifier 0-10VDC or 4-20mA
Master Heavy-Duty Weighing: The Ultimate Guide to 30T & 60T Load Pin Load Cells (With In-Built Amplifiers)
In industrial lifting, marine crane operations, and heavy machinery, precision and durability aren’t just priorities—they are safety requirements. When measuring massive forces in restricted spaces, standard load cells often fall short.
Enter the 30T / 60T Load Pin Load Cell with an In-Built Amplifier.
Designed to seamlessly replace existing joint pins, shackles, or sheaves, these heavy-duty sensors transform structural pivot points into highly accurate weighing scales. Here is everything you need to know about integrating these robust components into your industrial ecosystem.
What is a Load Pin Load Cell?
A load pin load cell is a dual-shear strain gauge sensor machined directly into a solid metal pin. It is designed to measure tensile, compressive, or shear forces acting upon it. By replacing standard load-bearing pins (like a crane shackle pin or a pulley axle) with a smart load pin, you gain real-time force monitoring without altering the structural footprint of your machinery.
The Power of an In-Built Amplifier: 0-10VDC vs. 4-20mA
Traditional load cells output a raw millivolt signal ($mV/V$) that is highly susceptible to electrical noise and signal degradation over long cable runs. A built-in amplifier solves this by converting the raw micro-signal into a robust, industry-standard analog output directly inside the pin.
When choosing your amplified load pin, you will typically select between two primary output configurations:
1. 4-20mA Current Loop (The Industrial Standard)
- Best For: Long-distance signal transmission (up to hundreds of meters) and high-noise environments.
- How it works: Because it relies on current rather than voltage, it experiences zero signal drop over long cables. If a wire breaks, the current drops to 0mA, making fault detection instant.
- Ideal Integration: PLCs, distributed control systems (DCS), and outdoor marine applications.
2. 0-10VDC Voltage Output
- Best For: Short to medium-distance wiring where simplicity is key.
- How it works: Provides a direct voltage readout that scales linearly with the load (e.g., 0V = 0T, 5V = 15T, 10V = 30T).
- Ideal Integration: Data acquisition (DAQ) systems, panel meters, and localized controllers.
Key Technical Specifications (30T / 60T Capacities)
Feature30-Ton (30,000 kg) Variant60-Ton (60,000 kg) VariantRated Capacity30 Tonnes60 TonnesSignal Output4-20mA (2-wire/3-wire) or 0-10VDC4-20mA (2-wire/3-wire) or 0-10VDCMaterialHigh-tensile Alloy Steel or Stainless SteelHigh-tensile Alloy Steel or Stainless SteelProtection RatingIP67 / IP68 (Hermetically Sealed)IP67 / IP68 (Hermetically Sealed)Safe Overload150% of Rated Capacity150% of Rated CapacityUltimate Overload300% of Rated Capacity300% of Rated CapacityExcitation Voltage12-24VDC12-24VDC
Top Applications for 30T and 60T Load Pins
Because of their immense capacity and space-saving design, these heavy-duty load pins are widely utilized across demanding sectors:
- Crane & Hoist Overload Protection: Replaces the standard hook or shackle pin to prevent catastrophic structural failures during heavy lifts.
- Marine & Offshore Winches: Monitors mooring line tension and anchor line pulls under harsh, saltwater conditions.
- Structural Health Monitoring: Embedded into bridges, large trusses, or architectural pivot joints to monitor load distribution over time.
- Mining & Heavy Conveyors: Measures material weight on heavy-duty belt pulleys and large-scale bucket wheels.
Key Advantages of Amilified Load Pins
1. Space-Saving Retrofitting: No need to redesign your machinery. Simply swap your existing clevis, shackle, or pivot pin with a custom-engineered load pin.
2. Enhanced Noise Immunity: By amplifying the signal at the source, you eliminate interference from nearby high-voltage motors, variable frequency drives (VFDs), and radio frequencies.
3. Cost-Effective Installation: Eliminates the need for external signal conditioners or transmitter boxes, reducing both hardware costs and installation labor.
4. Extreme Durability: Built from high-grade alloy or stainless steel and sealed to IP67/68 standards, these pins thrive in mud, water, dust, and vibration.
Installation Best Practices
To ensure maximum accuracy and longevity out of your 30T or 60T load cell, keep these installation rules in mind:
- Alignment is Everything: Load pins are directional. They must be oriented precisely along the axis of the force being measured (usually indicated by an arrow engraved on the end of the pin).
- Prevent Rotation: Use an anti-rotation keeper plate or keyway to lock the pin securely in place. If the pin rotates, your load readings will become highly inaccurate.
- Check Clearances: Ensure there is adequate axial clearance so the pin doesn't bind against the housing, which can cause force shunting and false readings.
Looking for a Reliable Heavy-Duty Load Cell Solution?
Whether you need to secure a marine winch or protect an industrial overhead crane, our customized 30T and 60T amplified load pins offer the plug-and-play reliability your project demands.
Contact our engineering team today for customized dimensions, material certifications, and a tailored quote for your specific 0-10V or 4-20mA application.
