Tension Link Load Cells: High-Accuracy Force Measurement Solutions
In the world of industrial weighing and heavy lifting, accuracy isn't just a preference—it’s a safety requirement. Tension link load cells are the backbone of high-capacity force measurement, designed to turn a crane or a winch into a precise weighing instrument.
Whether you are monitoring cable tension on an offshore rig or weighing shipping containers, understanding how these sensors work is key to operational efficiency.
What is a Tension Link Load Cell?

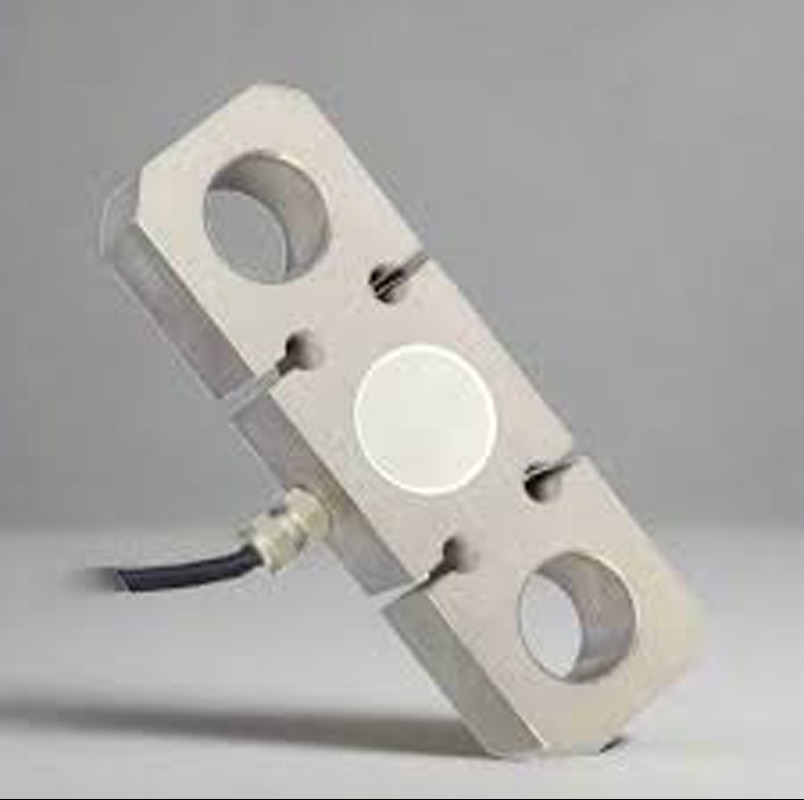

A tension link load cell (sometimes called a 'tension link' or 'dynamometer') is a specialized sensor designed to measure pulling forces. Unlike compression load cells that sit under a load, tension links are integrated into the 'line' of the force, typically via shackles.
As force is applied, the internal strain gauges detect minute deformations in the high-strength alloy or stainless steel body, converting that physical stress into a precise electrical signal.
Key Benefits of Tension Link Technology
Why choose a tension link over other force measurement methods? It comes down to three main factors:
- Exceptional Accuracy: Modern tension links provide high-resolution data, often with an accuracy range of $pm 0.1%$ of the full-scale capacity.
- Durability in Harsh Environments: Built with high IP ratings (IP67 or IP68), these cells are resistant to dust, water, and corrosion—essential for maritime and construction sites.
- Versatility: They are lightweight compared to their capacity, making them portable and easy to install in existing rigging setups.
Common Applications
Tension link load cells are indispensable in industries where 'the big lift' happens daily:
- Crane & Hoist Monitoring: Preventing dangerous overloads during lifting operations.
- Maritime & Offshore: Measuring towing line tension and anchor winching forces.
- Utility & Telecom: Ensuring correct tensioning of overhead power lines and guy wires.
- Structural Testing: Applying measured tension to bridges, cables, and architectural supports.
Conclusion: Precision is Your Best Safety Policy
Investing in high-accuracy force measurement solutions like tension link load cells does more than just give you a number on a screen. It protects your equipment from structural failure, ensures regulatory compliance, and—most importantly—keeps your crew safe.
