20kg Miniature Button Load Cell | High Precision Compact Compression Sensor
In the world of industrial automation and precision measurement, bigger isn't always better. As devices shrink and 'smart' technology finds its way into tighter spaces, the demand for compact force measurement has skyrocketed.
Enter the 20kg Miniature Button Load Cell. This tiny powerhouse is the unsung hero of medical devices, robotics, and high-tech manufacturing. But what makes this specific sensor so essential?
What is a Miniature Button Load Cell?

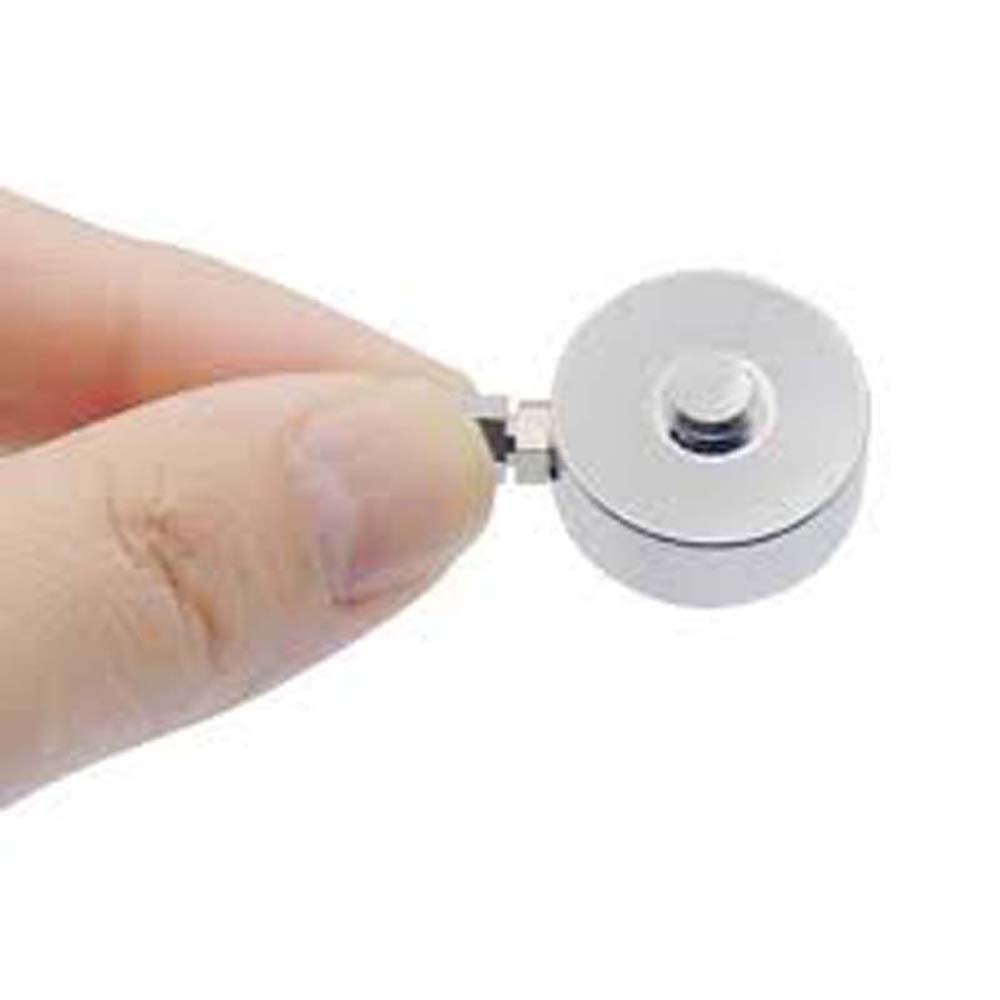

A button load cell is a low-profile, compression-only force transducer. It gets its name from its physical shape—resembling a small metal button. Despite its small stature (often less than 20mm in diameter), a 20kg capacity sensor provides a professional-grade balance between sensitivity and ruggedness.
Key Features of the 20kg Compression Sensor
- Ultra-Low Profile: Designed for applications where vertical space is at a premium.
- High Precision: Offers excellent linearity and repeatability, typically within $pm 0.5%$ of full scale.
- Stainless Steel Construction: Most high-quality button cells are forged from 17-4PH stainless steel, making them resistant to corrosion and mechanical fatigue.
- IP Protection: Often rated at IP65 or higher, ensuring they can withstand dust and light moisture in industrial environments.
Top Applications for 20kg Button Load Cells
Where exactly do you use a sensor this small? The 20kg range (roughly $200N$ of force) is a 'sweet spot' for several industries:
- Medical Equipment: Monitoring fluid bag weights, syringe pump pressure, or prosthetic limb feedback.
- Robotics & Haptics: Integrating 'touch' sensitivity into robotic grippers or end-effectors.
- Battery Manufacturing: Measuring the 'press-fit' force during the assembly of small electronics and cell components.
- Automotive Testing: Small-scale component testing, such as button-press force on dashboards or wiper arm tension.
Technical Specifications at a Glance
When sourcing a 20kg load cell, keep an eye on these critical metrics:
FeatureTypical SpecificationRated Capacity20kg ($200N$)Output Sensitivity$1.0 text{ to } 2.0 mV/V$Excitation Voltage$5 text{ to } 10V DC$Compensated Temp Range$-10^circ C text{ to } +60^circ C$Safe Overload$150% text{ of Full Scale}$Installation Tips for Maximum Accuracy
Because button load cells have a very small surface area, improper installation can lead to measurement errors. Follow these best practices:
- Ensure Parallelism: The mounting surface must be flat and smooth. Even a slight tilt can introduce 'side-loading' errors.
- Centric Loading: The force must be applied exactly to the center 'button' of the sensor.
- Avoid Over-torquing: If the cell has mounting holes, follow the manufacturer's torque specs to avoid deforming the internal strain gauges.
Conclusion
The 20kg Miniature Button Load Cell is the perfect marriage of form and function. Whether you are an engineer designing the next generation of wearable tech or a factory manager optimizing a production line, this compact compression sensor delivers the precision you need without the bulk.
