High-Precision Flange Type Compact Compression Load Cells: Features & Benefits
In the world of industrial weighing and force measurement, space is often the most expensive commodity. When you need high-capacity monitoring but are constrained by a compact machine envelope, the Flange Type Compact Compression Load Cell emerges as the gold standard solution.
Whether you are in aerospace, automotive testing, or industrial automation, understanding why these sensors are preferred can help you optimize your systems for both accuracy and longevity.

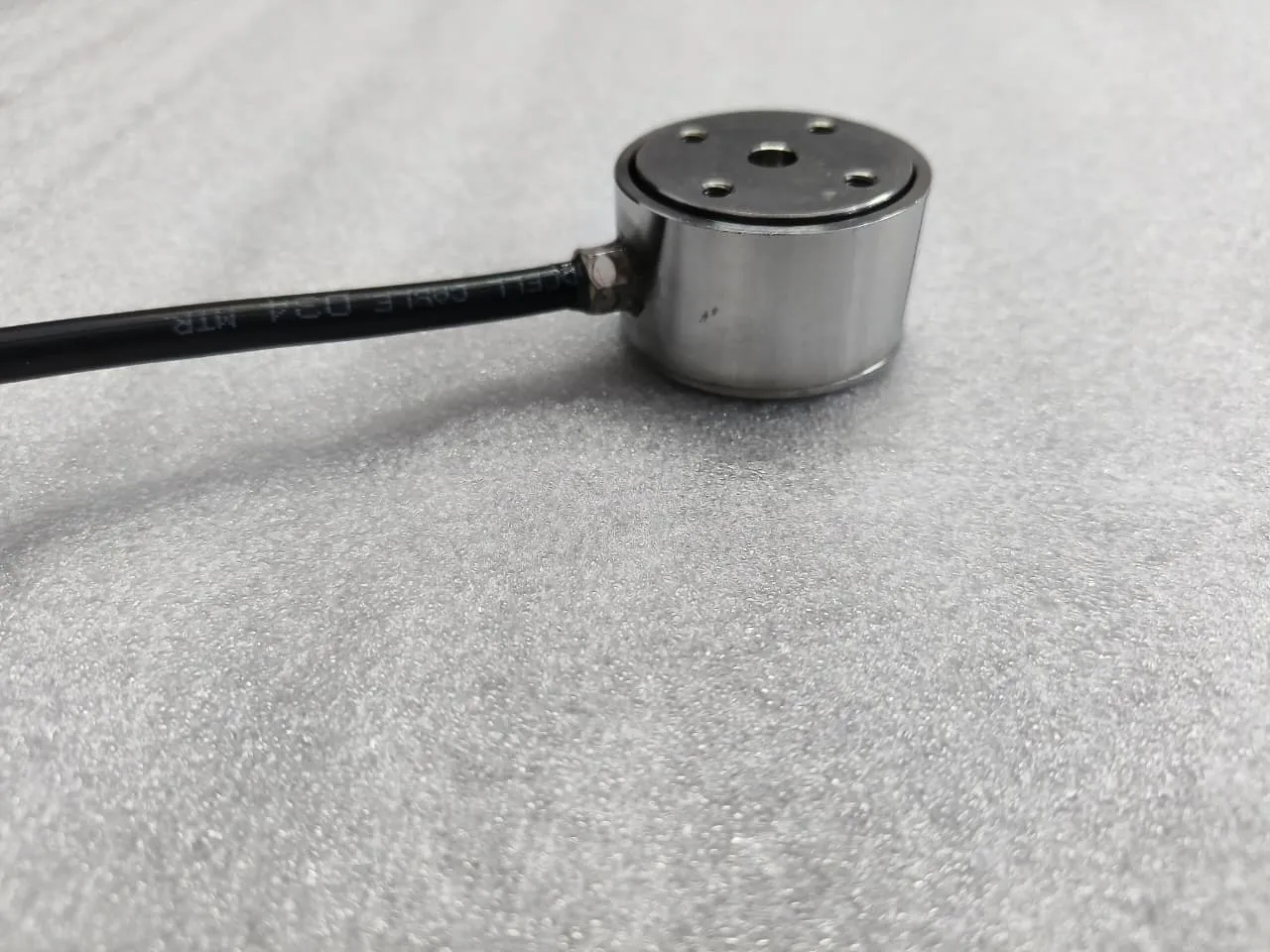

What is a Flange Type Compact Compression Load Cell?
A flange-type compact load cell is a low-profile force transducer specifically designed for compression-only applications. Unlike traditional canister load cells, which can be tall and bulky, the flange design utilizes a flat, disc-like mounting surface.
This design allows the sensor to be bolted directly into a mechanical assembly, providing superior stability and resistance to 'off-center' loading or side forces that might tilt or damage other sensors.
Key Benefits of the Flange Design
1. Ultra-Low Profile
The primary advantage is the 'pancake' or compact height. This makes it ideal for integrated applications like:
- Press-fit monitoring
- Tablet compression machines
- Bolt-force measurement
2. High Rigidity and Stability
The flanged base provides a wide footprint. By securing the sensor with bolts through the flange, you eliminate the risk of the cell shifting during high-vibration processes. This rigidity ensures a higher natural frequency, which is critical for high-speed dynamic measurements.
3. Excellent Accuracy in Harsh Conditions
Most flange-type cells are constructed from high-grade stainless steel and are hermetically sealed (often IP65 or IP67 rated). This protects the internal strain gauges from dust, moisture, and corrosive industrial environments.
Technical Specifications to Look For
When sourcing a load cell for your project, pay close attention to these parameters:
FeatureImportanceRated CapacityEnsure it covers 120% of your expected max load for safety.Non-LinearityLook for $pm 0.5%$ FS or better for high-precision tasks.Operating TempStandard ranges usually span $-20^circtext{C}$ to $+70^circtext{C}$.MaterialStainless steel is preferred for durability over aluminum.Common Applications
Industrial Automation
In automated assembly lines, these cells monitor the force used to join parts together. If the force is too low, the part may be loose; too high, and it may be damaged. The flange mount ensures the sensor stays aligned through millions of cycles.
Materials Testing
Because they are easy to integrate into a test stand, flange compression cells are frequently used to test the crush strength of materials or the spring rate of automotive components.
Weighing Systems
They are often placed under the legs of tanks, hoppers, or silos where vertical clearance is limited but heavy-duty weighing is required.
Tips for Installation
To get the most out of your load cell, follow these best practices:
- Surface Flatness: Ensure the mounting surface is machined flat to avoid introducing 'bending moments' that skew data.
- Cable Management: Use flexible conduits to protect the lead wires from mechanical shear or chemical exposure.
- Calibration: Always perform a system calibration after installation to account for the weight of the mounting hardware (tare).
Conclusion
The flange type compact compression load cell is the 'workhorse' of the miniaturized sensing world. By combining a space-saving form factor with the rugged stability of a bolted flange, it provides engineers with a reliable way to capture high-capacity force data without redesigning their entire machine.
