High-Precision Pillow Block Load Cell | 50kg to 10t Capacity for Web Tension & Process Control
In the world of continuous manufacturing—whether it's paper, film, foil, or textiles—maintaining the perfect balance of tension is the difference between a high-quality roll and costly material waste.
When it comes to monitoring these forces, the High-Precision Pillow Block Load Cell stands out as the industry standard for reliability. In this guide, we explore why these sensors are critical for web tension and process control, and how to choose the right capacity for your application.
What is a Pillow Block Load Cell?

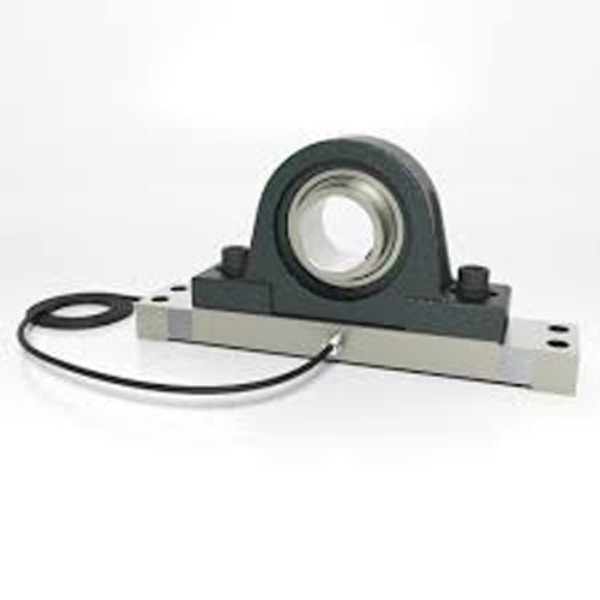

A pillow block load cell is a specialized force sensor designed to be mounted directly under a bearing block. Unlike standard S-type or shear beam load cells, these are engineered to measure the resultant force of a moving web (material) as it passes over a roller.
By integrating the sensor directly into the machine's frame, manufacturers can achieve real-time, highly accurate tension data without altering the mechanical layout of the production line.
Key Features of High-Precision Models
To ensure 'flicker-free' data and long-term stability in industrial environments, top-tier pillow block load cells incorporate several advanced features:
- Wide Capacity Range: Available from 50kg to 10t, allowing for everything from delicate plastic film processing to heavy-duty steel strip tensioning.
- High-Grade Materials: Typically constructed from high-tensile Stainless Steel (17-4 PH) or Alloy Steel (EN24) to withstand harsh industrial vibrations.
- Environmental Sealing: Look for IP67 or IP68 ratings, ensuring the internal strain gauges are protected against dust, moisture, and oil splashes.
- Low Profile Design: Minimizes the increase in the roller's center height, making them easy to retrofit into existing machinery.
Critical Applications: Web Tension & Process Control
1. Web Tension Monitoring
In industries like printing and packaging, inconsistent tension leads to wrinkling, registration errors, or 'web breaks.' High-precision load cells provide the feedback loop necessary for automated drive systems to adjust speed and maintain constant tension.
2. Conveyor Belt Weighing
For heavy-duty process control (1t to 10t capacities), these sensors are mounted under conveyor rollers to monitor the flow of bulk materials, ensuring the system isn't overloaded and the throughput remains consistent.
3. Rolling Mills and Textiles
In textile and metal foil manufacturing, even a minor deviation in force can stretch or deform the product. The high resolution of modern ADCs coupled with these load cells allows for detecting even gram-level changes in tension.
Selecting the Right Capacity: 50kg to 10t
Choosing the correct capacity is vital for both accuracy and sensor longevity. You must calculate the Resultant Force ($R$), which is a factor of the material tension, the wrap angle of the web over the roller, and the weight of the roller itself.
$$R = 2 cdot T cdot sin(theta/2) + W_{roller}$$
- 50kg – 500kg: Ideal for lightweight films, paper, and small-diameter rollers.
- 1t – 5t: Standard for mid-range textiles, rubber, and general process weighing.
- 10t: Reserved for heavy-duty metal processing and massive bulk handling systems.
Why Quality Calibration Matters
For an industrial sensor to provide a stable 'zero' and repeatable 'span,' the internal instrumentation amplifier and ADC must be shielded from electromagnetic interference (EMI). High-precision pillow block load cells are often paired with controllers that utilize digital filtering to eliminate mechanical noise, providing a clean signal for your PLC or SCADA system.
Conclusion
Investing in a High-Precision Pillow Block Load Cell is an investment in your production's uptime and product quality. By accurately measuring forces from 50kg up to 10t, you gain total control over your web tension and manufacturing processes.
Looking for a custom load cell solution for your MSME or industrial plant? Choosing a manufacturer that understands both the mechanical metallurgy and the electronic signal conditioning is the key to a long-lasting weighing system.
