The Ultimate Guide to Load Cells: Choosing Between S-Type, Button, Pancake, and More
In the world of industrial automation and precision measurement, load cells are the unsung heroes. These transducers convert force into measurable electrical signals, allowing us to weigh everything from a gram of medication to a 50-ton shipping container.

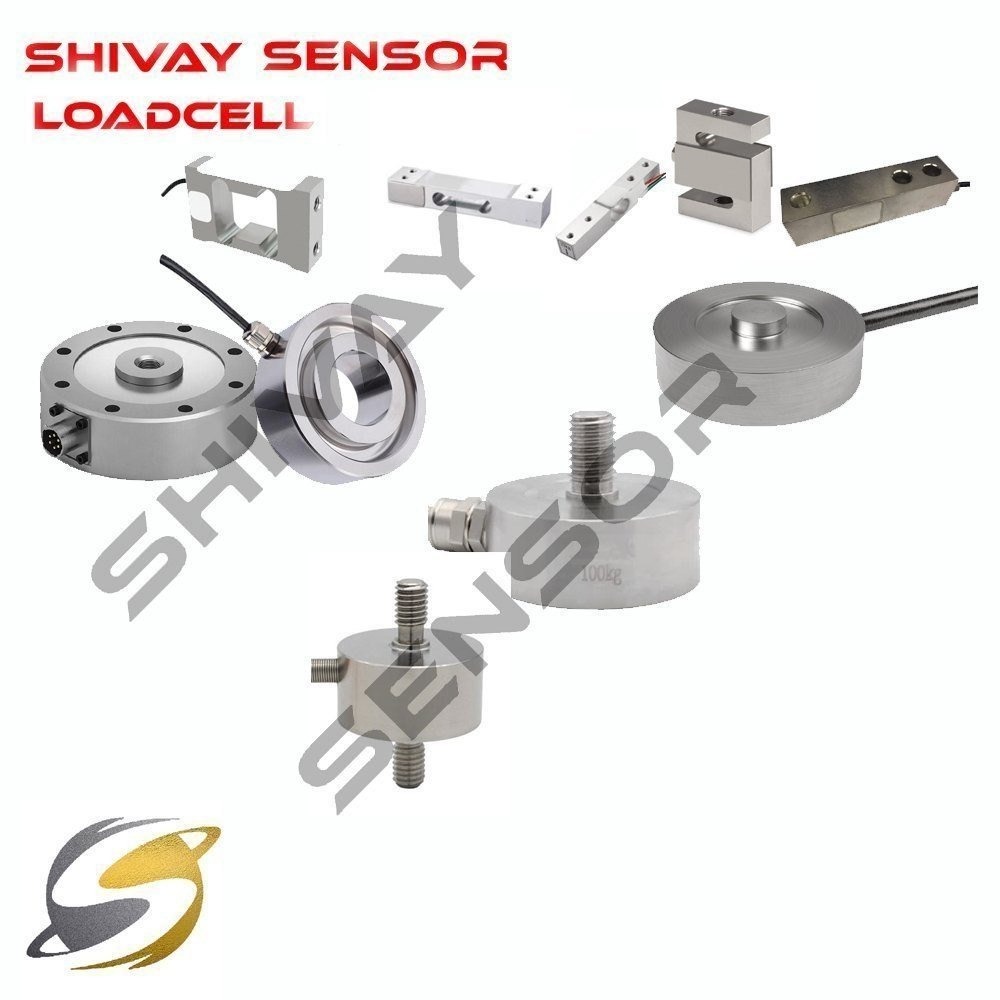

However, not all load cells are created equal. Choosing the wrong form factor can lead to measurement errors, mechanical failure, or unnecessary costs. In this guide, we break down the four most common types: S-Type, Button, Pancake, and Web Tension, to help you find the perfect fit for your application.
1. S-Type Load Cells: The Versatile Workhorse
Named for their 'S' shape, these are among the most popular sensors due to their ability to measure both tension (pulling) and compression (pushing) forces.
- Best For: Hanging scales, hopper weighing, and mechanical-to-electronic scale conversions.
- Key Advantage: Exceptional linearity and easy installation using rod-end bearings or eyebolts.
- Capacity Range: Usually 25kg to 10,000kg.
2. Button Load Cells: Compact & Space-Saving
When space is at a premium, the Button Load Cell is the go-to solution. These small, coin-shaped sensors are designed strictly for compression applications.
- Best For: Medical devices, handheld instruments, and small-scale robotic assembly.
- Key Advantage: Minimal footprint and high stiffness, making them ideal for high-speed testing where displacement must be kept to a minimum.
- Pro Tip: Ensure the loading surface is flat to avoid 'off-center' loading errors.
3. Pancake Load Cells: High Precision & Stability
Also known as 'Low Profile' or 'Universal' load cells, the Pancake Load Cell features a central threaded hole surrounded by a rigid outer ring. Like the S-Type, it can handle both tension and compression.
- Best For: Materials testing machines (ASTM testing), tank weighing, and high-capacity industrial presses.
- Key Advantage: Their symmetrical design makes them highly resistant to off-axis loading (side forces). If your load isn't perfectly centered, a Pancake cell is your safest bet for accuracy.
4. Web Tension Load Cells: Specialized for Processing
Unlike general-purpose sensors, Web Tension Load Cells are specifically designed to monitor the tension of continuous materials—like paper, film, foil, or textiles—as they move over rollers.
- Best For: Printing presses, laminating machines, and paper mills.
- Key Advantage: They prevent material breakage or 'slack' by providing real-time feedback to the motor drive system, ensuring consistent product quality.
How to Choose the Right Load Cell for Your Project
To narrow down your search, ask yourself these three questions:
- Direction of Force: Do you need to measure pulling, pushing, or both?
- Environment: Will the sensor be exposed to moisture or chemicals? (Look for IP67 or IP68 ratings).
- Physical Constraints: How much height/width do you have available for the sensor mount?
Selecting the right load cell is the difference between 'good enough' data and precision-engineered success. Whether you need the compact power of a Button cell or the rugged stability of a Pancake cell, understanding these geometries is the first step toward accurate measurement.
