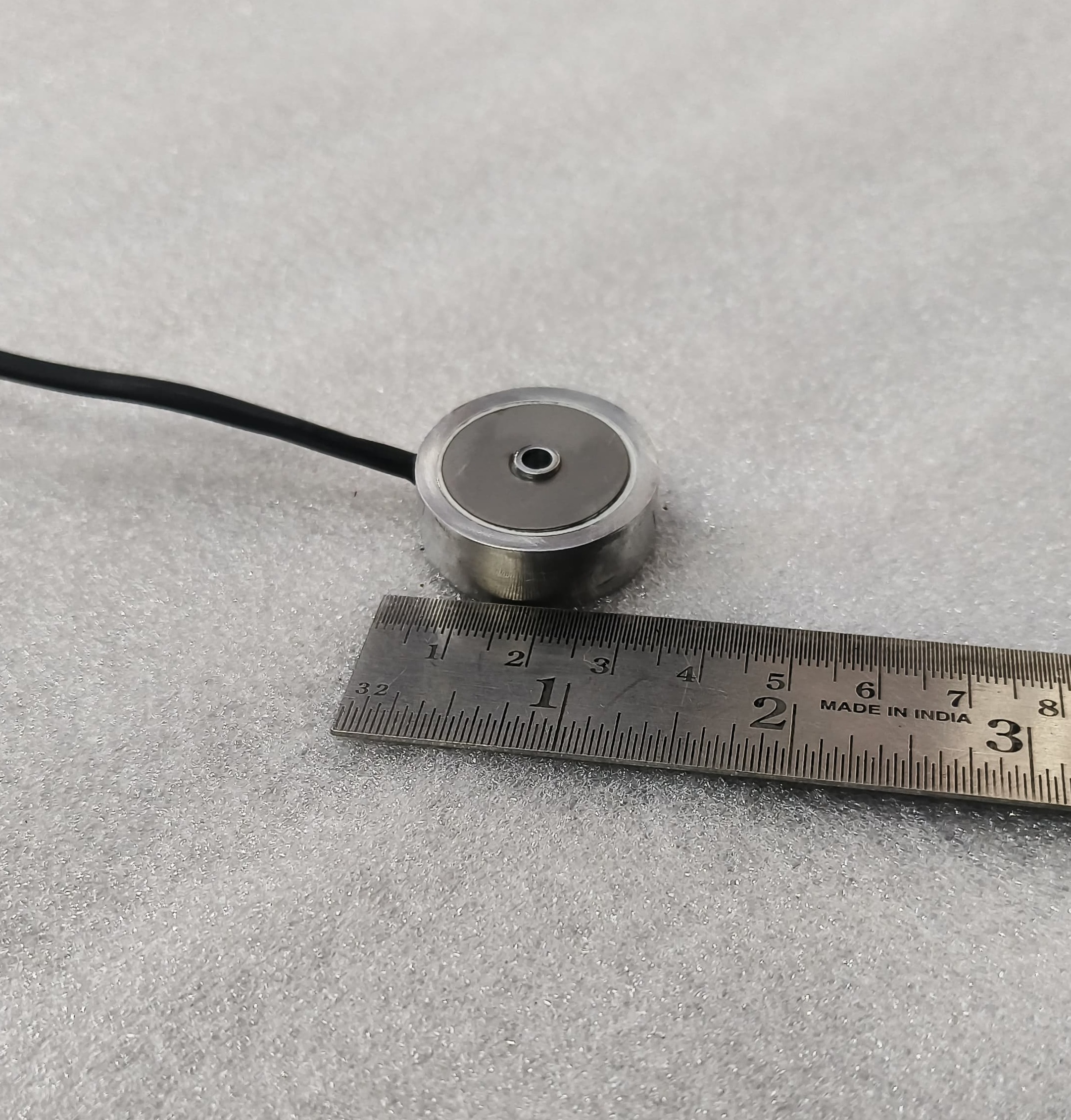

Low Profile Compact 20 kg Miniature Donut Load Cell
When your application demands high-accuracy force measurement but offers almost zero wiggle room, the Low Profile Compact 20 kg Miniature Donut Load Cell is the engineered solution you need. Often referred to as 'thru-hole' load cells, these components are designed for applications where a bolt or shaft must pass directly through the center of the sensor.
Key Specifications & Performance
Designed for both endurance and precision, this miniature powerhouse packs industrial-grade tech into a tiny footprint.
FeatureSpecificationCapacity20 kg (approx. 200N)DesignCompression / Thru-hole (Donut)MaterialStainless Steel or High-Strength AluminumOutputmV/V (Analog)Safe Overload150% of Full ScaleWhy Choose a 'Donut' Design?
The primary advantage of the donut (toroidal) shape is its ability to measure clamping forces or bolt loading. Unlike standard S-type or beam load cells, the compact donut profile allows it to sit flush between two surfaces, acting as a high-tech washer.
- Ultra-Low Profile: Ideal for height-constrained assemblies where vertical space is at a premium.
- Central Thru-Hole: Allows for the passage of cables, bolts, or shafts, ensuring the force is applied concentrically.
- High Stiffness: Minimal deflection under load, providing faster response times and better stability.
Top Industry Applications
Where do you find a 20 kg miniature sensor? Usually, in places where precision meets automation:
- Medical Devices: Monitoring force in syringe pumps or surgical robotics.
- Electronics Assembly: Measuring press-fit forces during delicate PCB manufacturing.
- Automotive Testing: Measuring gear shift forces or small component tension.
- Robotic End-Effectors: Providing 'touch' sensitivity to robotic grippers.
- Research & Development: Compact scale modeling and structural testing.
Installation Best Practices
To ensure your 20 kg load cell provides the rated accuracy (typically within $pm 0.5%$ of full scale), follow these integration tips:
- Surface Flatness: Ensure the mounting surfaces are smooth and parallel to avoid 'point loading,' which can skew data.
- Centric Loading: The force must be applied evenly around the circumference of the donut to prevent off-center loading errors.
- Cable Protection: In miniature setups, the lead wires are often thin. Use adequate strain relief to prevent accidental detachment during high-cycle operations.
Final Thoughts
The 20 kg Miniature Donut Load Cell is the ultimate 'hidden' hero of the sensor world. It offers a unique combination of a small form factor and robust mechanical performance, making it indispensable for modern, miniaturized industrial equipment.
