🔬 Miniature Force Transducers: Compact Sensors Revolutionizing Testing & R&D
Miniature force transducers are the unsung heroes of modern engineering, enabling high-precision force measurement in spaces where traditional load cells simply won't fit. Often referred to as mini load cells or compact force sensors, these devices are essential tools for engineers and researchers who need reliable data without bulky equipment.
What is a Miniature Force Transducer?

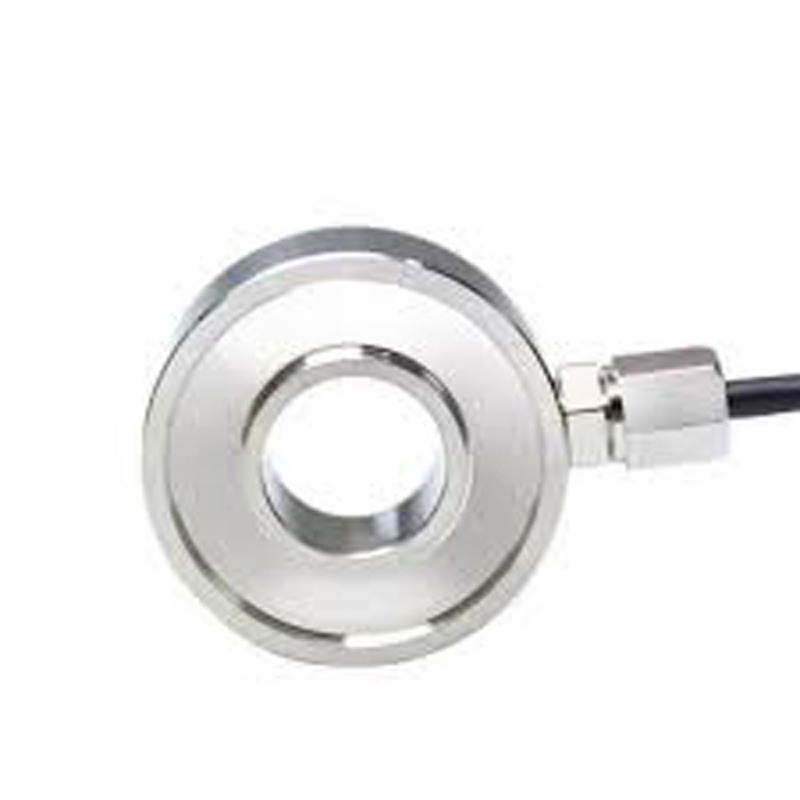

A miniature force transducer is a highly specialized type of load cell designed to measure tension, compression, or both, but within a significantly smaller physical footprint than standard models.
Despite their size, they operate on the same reliable principles as their larger counterparts, typically utilizing strain gauge technology. The force applied to the transducer causes a minuscule deformation in its internal structure, which is measured by the attached strain gauges and converted into a precise electrical output signal proportional to the applied force.
🔑 Key Features and Benefits for R&D
The small form factor is not just about convenience; it unlocks new possibilities in testing and research:
- Space Constraint Testing: Their primary advantage is the ability to be integrated into tightly packed assemblies, robotic end-effectors, medical devices, or small-scale laboratory setups.
- High Natural Frequency: Due to their low mass and high stiffness, miniature transducers often exhibit a high natural frequency. This is critical for dynamic testing applications where rapid force changes (like impact or vibration) must be accurately captured.
- Minimal Intrusion: In research, it's vital that the measuring device does not significantly alter the system being tested. Their light weight and small size ensure they introduce minimal inertia or change the mechanical properties of the test subject.
- Wide Range of Capacities: Though they are miniature, these sensors come in a vast range of capacities, from mere grams (millinewtons) up to several tons, making them versatile for micro-testing and scaled-down industrial applications.
🚀 Top Applications in Research & Development
These compact sensors are driving innovation across several high-tech fields:
FieldApplication AreaRobotics & AutomationMeasuring grip force on robotic arms (haptic feedback), validating insertion force, or collision detection.Medical DevicesCalibrating surgical tools, measuring tissue resistance, or testing drug delivery mechanisms.Aerospace & AutomotiveComponent fatigue testing, measuring pedal force, or wind tunnel model analysis.Materials TestingPull-testing wires, textiles, or microscopic components; bond strength analysis.HapticsMeasuring the forces involved in human-machine interaction and tactile feedback systems.selecting the Right Miniature Force Sensor
When looking to buy a miniature force transducer, consider these critical specifications:
- Capacity: Choose a sensor where the expected maximum load falls within 70-80% of the sensor's rated capacity for safety and accuracy.
- Type (Tension/Compression): Ensure the sensor is rated for the type of force you are measuring. S-Beam and Button/Disc styles are common miniature form factors.
- Accuracy & Non-Linearity: Look for specifications that define the sensor's precision, often expressed as a percentage of the Full Scale Output (FSO).
- Environmental Protection (IP Rating): For use in harsh lab or industrial settings, check the IP rating to ensure protection against dust, moisture, or chemicals.
Miniature force transducers are an indispensable tool for any professional working in demanding testing environments. Their blend of small size, high accuracy, and dynamic response makes them the ideal choice for pushing the boundaries of what's possible in R&D and product validation.
