OEM Custom Load Cell Design & Manufacturing for Unique Applications
When you are designing a breakthrough piece of industrial machinery, medical equipment, or automated processing hardware, every millimeter and millivolt counts. As an Original Equipment Manufacturer (OEM), you build your reputation on machine reliability, precision, and efficiency.
Yet, many engineering teams hit a frustrating roadblock when it comes to force and weight measurement: the standard catalog.
You find a load cell that has the right accuracy, but it’s too bulky for your tight enclosure. Or you find one that fits, but it lacks the ruggedness needed to survive your machine's operating environment.
When off-the-shelf components force you to compromise your machine's design, the solution isn't to redesign your machine—it’s to utilize custom load cells designed specifically for OEMs.
The Core Challenges of Standard Load Cells in OEM Machinery
Relying on standard, mass-produced sensors often forces OEM design engineers into difficult trade-offs:
- Spatial Constraints: Modern machines are shrinking, demanding higher power and sensor density in tighter footprints. Standard load cells rarely prioritize compact or irregular geometries.
- Environmental Vulnerabilities: Whether your machines face high-pressure washdowns, corrosive chemicals, extreme temperatures, or heavy vibrations, standard sensors often lack the specialized sealing (like true hermetic IP68/IP69K sealing) or specific raw material choices required for long-term survival.
- Signal Integration Friction: Matching standard sensor outputs to your proprietary controllers or embedded electronics often requires extra signal conditioning steps, adding cost and complexity to your internal circuitry.
How Custom Load Cell Design Empowers OEM Machine Builders
Opting for a custom-engineered force sensor doesn't just solve a component issue—it optimizes your entire manufacturing process and product lifecycle.
1. Tailored Form Factors and Geometries

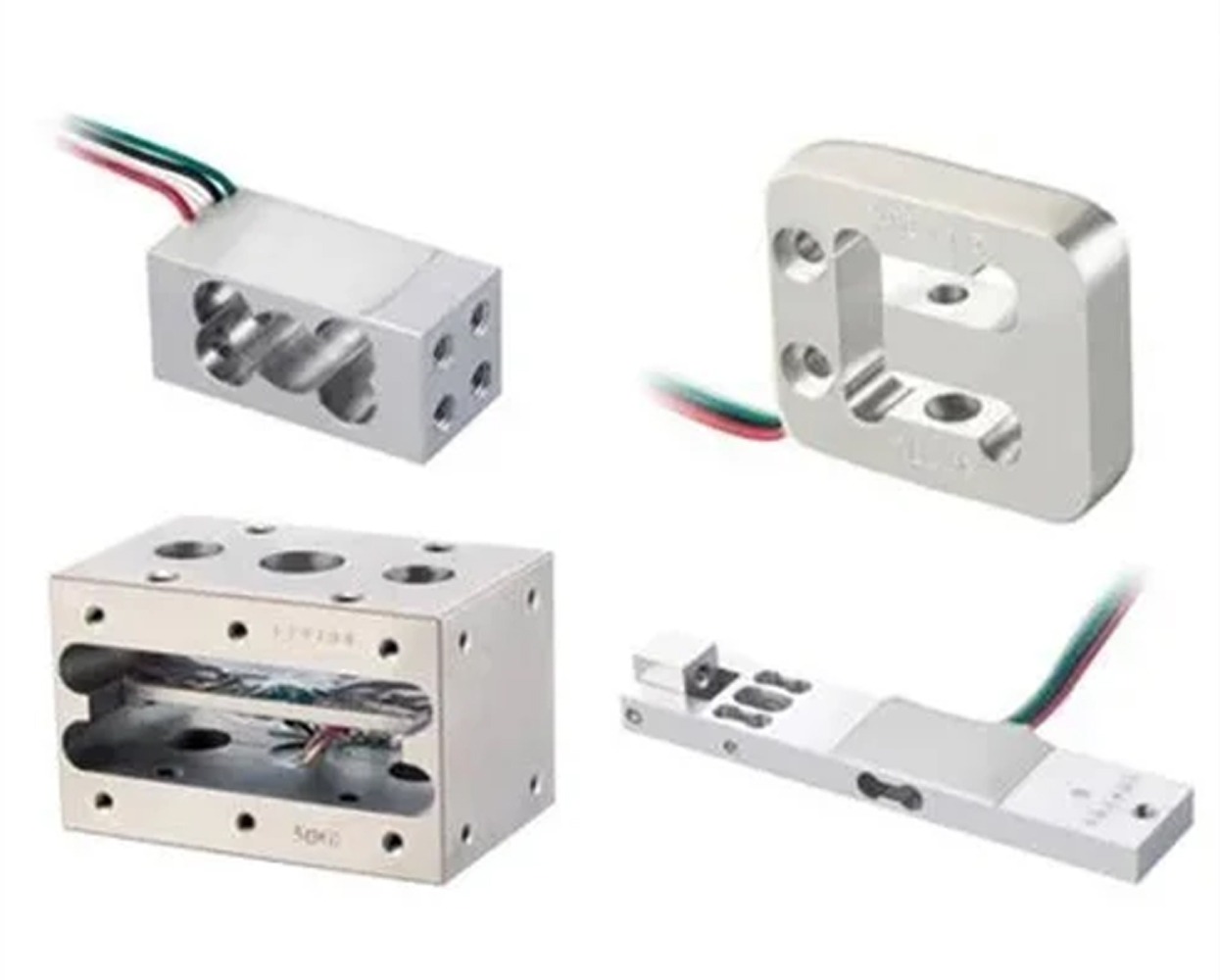

Instead of designing your mechanical assembly around a standard brick or canister sensor, custom manufacturing allows the load cell to bend to your design. From miniature button cells and ultra-low profile pancake sensors to custom-dimensioned pins, links, and cruciform spoke designs, the sensor integrates seamlessly into your existing structure.
2. Built for Your Exact Environment
Custom manufacturing means selecting the precise material and treatment for the job. Whether your application demands high-tensile aircraft aluminum, rugged alloy steels, or the extreme corrosion and fatigue resistance of 17-4 PH stainless steel, custom cells are optimized for your machine's exact operational life cycle and hardness requirements (HRC).
3. Plug-and-Play Electrical Integration
A true OEM custom sensor partner doesn't just ship bare wires. Your sensors can be designed with built-in instrumentation amplifiers, customized cable lengths, specialized connectors, or calibrated to match your specific ADC system requirements—ensuring stable, flicker-free counts straight out of the box.
Choosing the Right OEM Custom Sensor Partner
For machine manufacturers, choosing a sensor supplier isn't just a transaction; it's a strategic partnership. When evaluating a custom load cell manufacturer, look for teams that offer:
- In-House Prototyping & Engineering: A dedicated team that understands stress analysis, finite element method (FEM) modeling, and strain gauge optimization.
- Scalable Production: A partner capable of delivering high-quality prototypes for your R&D phase, with the manufacturing capacity to scale up smoothly as your machine production increases.
- Rigorous Calibration Standards: Ensure every custom unit undergoes strict calibration and repeat testing to guarantee field reliability, protecting your brand's reputation.
Elevate Your Machine Design
Don't let a catalog catalog limit your engineering vision. By integrating tailored force sensors built specifically for your application, you reduce assembly time, eliminate unnecessary signal conditioning components, and deliver a more robust, reliable machine to your end-users.
Partner With an Expert OEM Sensor Manufacturer
Are you designing a new machine or upgrading an existing production line? Our engineering team specializes in designing high-precision, custom load cells and controllers tailored to exact OEM specifications. [Contact our engineering team today] to discuss your project dimensions and application requirements.
