Shear Web Load Cell
In the demanding world of industrial weighing and force measurement, accuracy, and reliability are non-negotiable. While many load cell designs exist, one stands out for its unique combination of low-profile design and exceptional performance: the Shear Web Load Cell.
Often referred to by its popular synonym, the Pancake Load Cell, this force transducer is the go-to solution for high-capacity applications that require maximum precision in a compact space.
Ready to understand why top engineers rely on this powerhouse of measurement? Let's dive in.
What is a Shear Web Load Cell?
A Shear Web Load Cell is a type of force transducer that operates on the principle of measuring shear stress.
Unlike traditional designs that primarily measure bending or compression in a single column, the shear web (or 'shear strut') design features a central, web-like elastic element. When a force is applied, this internal element undergoes a minute shear strain, which is precisely measured by strain gauges bonded to the web.
The result is a highly symmetrical, low-profile body—hence the 'Pancake Load Cell' nickname—that delivers an exceptionally accurate and stable signal.
Why Choose a Pancake/Shear Web Load Cell? Top 5 Benefits
When selecting a load cell for your critical application, the unique design of the Shear Web Load Cell offers distinct advantages:
1. Exceptional Resistance to Off-Center Loading
This is arguably the greatest strength of the shear web design. The multiple internal shear struts provide superior stability, making the sensor significantly less susceptible to errors caused by side-loading or non-axial (off-center) forces. This ensures accuracy even in real-world, dynamic environments.
2. Versatile Tension and Compression Measurement (Universal)

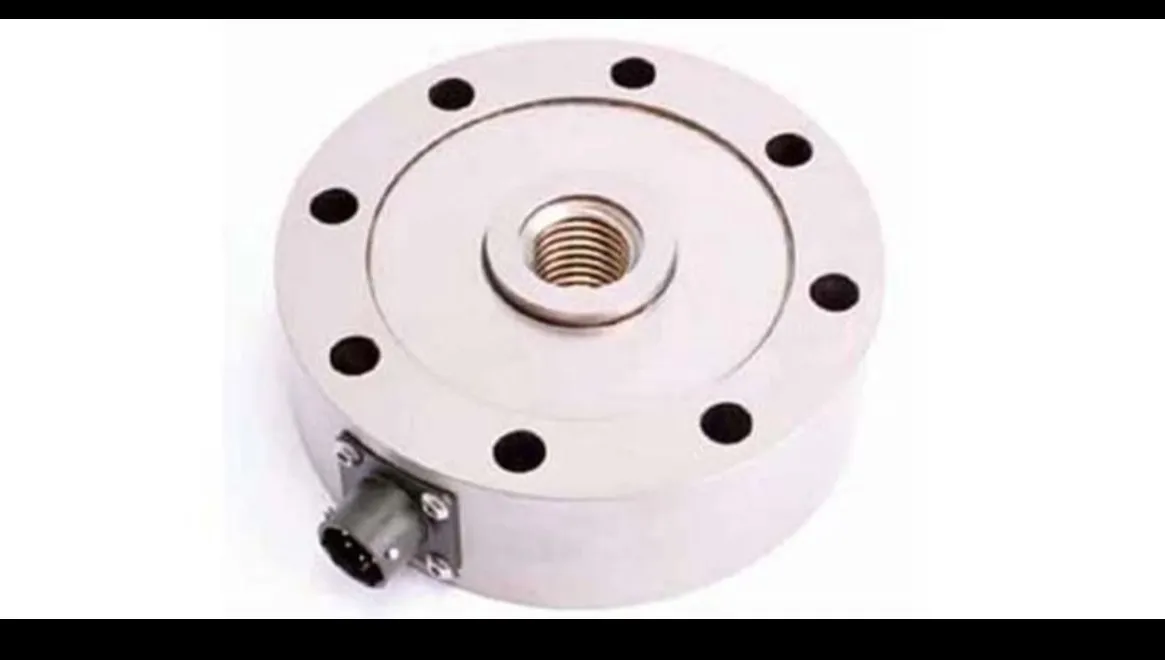

Most shear web load cells are designed with a central threaded through-hole and outer mounting holes. This simple configuration allows the cell to measure forces in both the tension (pulling) and compression (pushing) directions, making it a true Universal Load Cell for a wide array of applications.
3. Low-Profile, High-Capacity Design
The flat, disc-like shape is perfect for installations where vertical space is severely restricted. Despite their low profile, these cells are built for high-capacity loads, often ranging from medium to extremely heavy-duty requirements.
4. High Accuracy and Excellent Linearity
Due to the concentrated and stable nature of the shear stress measurement, Pancake Load Cells typically offer higher precision (better linearity and lower hysteresis) than many other cell types in similar high-capacity ranges.
5. Fatigue Rated and Durable Construction
Many Shear Web Load Cells are fatigue-rated, meaning they are engineered and tested to withstand millions of high-cycle loading events without a loss in accuracy. Constructed from robust stainless or alloy steel, they are highly durable for demanding industrial use.
Key Applications for Shear Web (Pancake) Load Cells
The unique strengths of the Shear Web design make it indispensable in a variety of industries:
Industry/ApplicationWhy the Shear Web Load Cell is IdealMaterial Testing MachinesMeasures both tension and compression with high accuracy for fatigue, dynamic, and static testing of materials.Tank & Silo WeighingIts resistance to side-loading and moment makes it perfect for accurately weighing large vessels where stirring, wind, or thermal expansion can cause non-axial forces.Hydraulic & Arbor PressesUsed for precise measurement of clamping force and press-fit forces in manufacturing and assembly processes.In-Line Force MonitoringExcellent for measuring force directly along a structural axis in both tension and compression, such as in cable or rope tensioning systems.Aerospace & Automotive TestingUsed in high-performance test rigs for measuring large, dynamic forces with a low installation profile.
Export to Sheets
Shear Web Load Cell vs. The Rest: A Quick Comparison
While other load cells (like S-Type or Canister cells) have their place, the Shear Web/Pancake design carves out a niche for demanding applications:
Load Cell TypeKey Design FeatureBest For...Shear Web (Pancake)Low profile, central hole, internal shear strutsHigh-capacity, low-height, high-accuracy, tension/compression with off-center load resistance.S-TypeS-shaped bodyLower-to-mid capacity, suspension/hanging applications (crane scales, hoppers).Canister/ColumnCylindrical shape, single columnCompression-only, ultra-high capacity, truck scales, permanent installations.
Export to Sheets
Conclusion: The Smart Choice for Critical Measurement
When your application demands high capacity, dual-mode (tension/compression) measurement, and uncompromising accuracy within a restricted vertical space, the Shear Web Load Cell (or Pancake Load Cell) is the clear winner.
By harnessing the power of its multi-strut shear stress technology, you ensure reliable, repeatable force data, driving quality control and efficiency in your most critical industrial and testing environments.
Ready to find the perfect Shear Web Load Cell for your specific needs? [Link to your Load Cell Product Page or Contact Page] Contact our experts today to discuss capacity, mounting, and fatigue-rated options!
