Achieving Perfect Tension: High-Precision Load Cells for Rotogravure & Flexo Printing

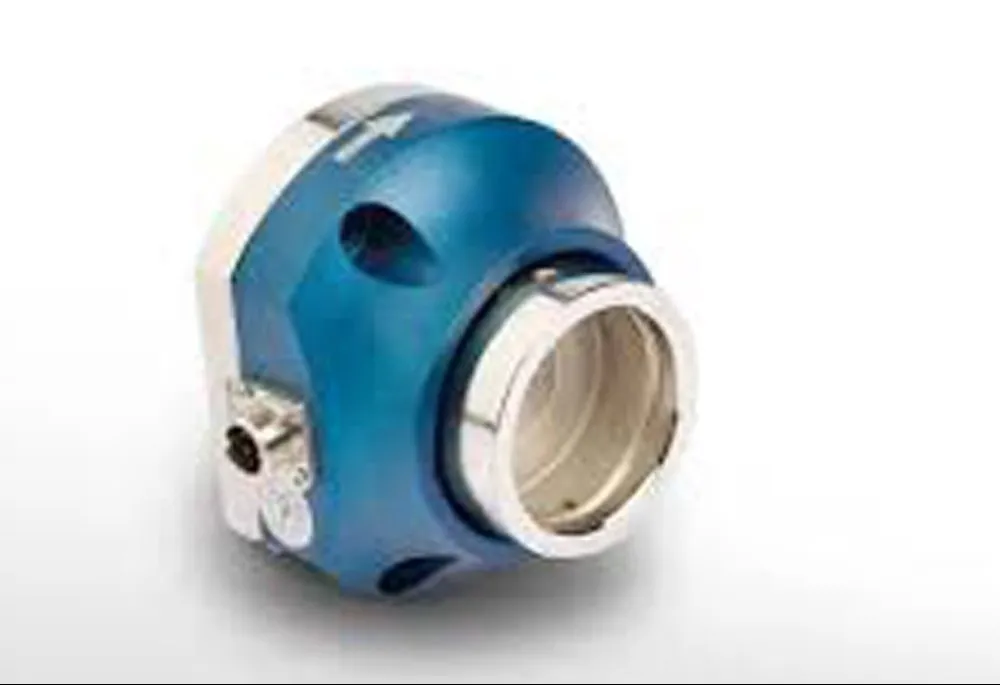

In the high-speed world of Rotogravure and Flexo printing, consistency is everything. Even a minor fluctuation in web tension can lead to registration errors, substrate stretching, or costly material waste. The heart of a stable printing line is the Tension Control Load Cell.
Why Tension Control is Critical in Modern Printing
Whether you are running thin films, foil, or heavy paperboard, maintaining a constant 'pull' across the rollers is vital. Tension control load cells convert the mechanical force of the web into a precise electrical signal, allowing your controller to make real-time adjustments to motor speeds.
Key Benefits of Upgrading Your Load Cells:
- Reduced Material Waste: Minimize 'snap-offs' and registration shifts during roll changes.
- Higher Production Speeds: Operate at maximum RPM without risking web breakage.
- Improved Print Quality: Ensure dots and colors align perfectly by eliminating substrate distortion.
Applications: Beyond the Printing Deck
While primarily used for ink application stages, these load cells are essential throughout the entire converting process:
- Unwind Stations: To manage braking torque as the roll diameter decreases.
- In-feed/Out-feed: To isolate tension between the printing units and the dryer.
- Rewind Stations: To ensure a tight, professional finish on the final product.
How to Choose the Right Load Cell for Your Press
When requesting a quote, ensure you have the following data ready:
- Maximum Web Width: Determines the force distribution.
- Max/Min Tension Levels: Essential for selecting the correct Newton (N) rating.
- Wrap Angle: The angle at which the material passes over the sensing roller affects the resultant force ($F_r$) on the sensor.
Expert Tip: For Rotogravure lines, we recommend dual-side load cell integration to account for uneven tension across wide webs.
Optimize Your Production Line Today
Don't let inconsistent tension eat into your profit margins. Our load cells are compatible with most major Rotogravure and Flexo machine brands and offer 'plug-and-play' integration with standard tension controllers.
