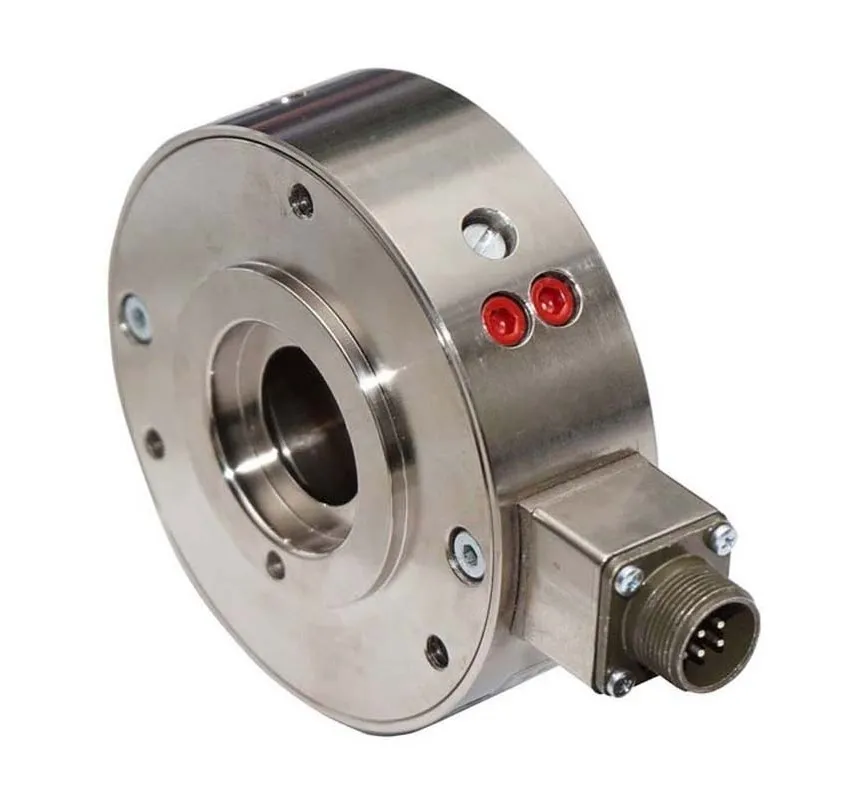

Web Tension Load Cell Manufacturers & Suppliers

Web Tension Load Cell Manufacturers & Suppliers

In high-speed, continuous processes involving flexible materials (webs) like paper, film, foil, textiles, and wire, maintaining the correct web tension is absolutely critical. Too little tension leads to wrinkling, telescoping, and material slippage; too much causes breaking, stretching, or damage to coatings.

The key to precise process control and consistent product quality lies in accurate, real-time measurement. This is where the web tension load cell (also known as a tension transducer) comes in.

What is a Web Tension Load Cell?

A web tension load cell is a specialized sensor designed to measure the pulling force exerted by a continuous web material as it moves through a machine (like a coater, slitter, or printer).

Unlike standard compression or universal load cells, web tension load cells are designed to:

• Mount Directly or indirectly beneath a measurement roller (often called a tension sensing roller or dancer roller).
•

• Measure Force applied by the roller's bearings as the web wraps around it.
•

• Provide a Continuous Analog Signal that is proportional to the actual tension force per unit width of the web.

How It Works (Simplified)

1. The web material is wrapped around a sensing roller.
2.

3. The bearings of this roller are mounted onto the load cell sensors.
4.

5. As the web pulls on the roller, it exerts a force (FT​).
6.

7. The load cell detects this force and converts it into an electrical signal (usually millivolts).
8.

9. This signal is sent to a tension controller, which then adjusts brakes, clutches, or motors to maintain the target tension.

Key Benefits of Accurate Web Tension Control

Investing in high-quality web tension load cells and control systems yields significant operational advantages:

• Reduced Waste and Scrap: Eliminates defects like wrinkling, breaking, and stretching.
•

• Increased Throughput: Allows machines to run reliably at higher speeds.
•

• Consistent Product Quality: Ensures uniform density, thickness, and coating quality.
•

• Energy Efficiency: Optimizes motor and brake usage.
•

• Predictive Maintenance: Allows for early detection of mechanical issues through tension variation analysis.

Selecting the Right Web Tension Load Cell

Choosing the correct load cell is vital for system performance. Consider these factors:

Selection FactorDescriptionKey MetricRoller Mounting StyleCantilevered (Flange Mount): For narrow webs; mounts on one side. Pillow Block (Through Shaft): Most common; supports both ends of the roller shaft.Mounting TypeOperating RangeThe maximum expected tension force. Always select a load cell capacity slightly higher than the maximum tension.Fmax​ (Newtons or Pounds)Sensitivity & AccuracyHow small a change in tension the sensor can reliably detect. Crucial for materials like thin film.% Full Scale Output (F.S.O.)Roller Diameter & Wrap AngleThese physical dimensions directly influence the resultant force on the load cell. The control system must account for these.Diameter, Angle (θ)EnvironmentConditions like high heat, moisture, or dust require specialized, rugged, or IP-rated load cells.IP Rating (e.g., IP65)

Export to Sheets

🌐 Web Tension Load Cell Applications

Web tension load cells are essential across many industries:

• Printing & Converting: Flexographic, gravure, and offset printing presses; laminators, coaters, and slitters.
•

• Packaging: Bag and pouch making, rewinders, and stretch wrappers.
•

• Textiles: Weaving, dying, and fabric inspection machinery.
•

• Wire & Cable: Drawing, spooling, and winding operations.
•

• Paper & Pulp: Tissue manufacturing, roll sorting, and splicing.

Conclusion: Control Your Web, Control Your Quality

Accurate web tension measurement using specialized web tension load cells is not just an accessory—it's the foundation of modern, efficient web processing. By understanding the principles and selecting the right sensor for your application, you can drastically reduce material waste, boost machine speeds, and guarantee superior product quality.
