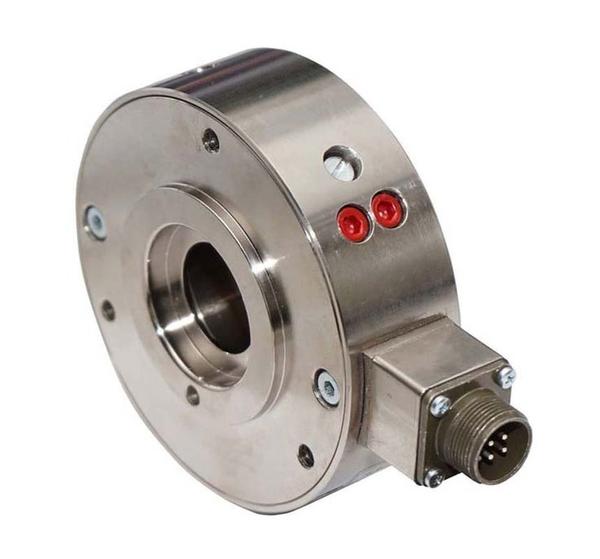

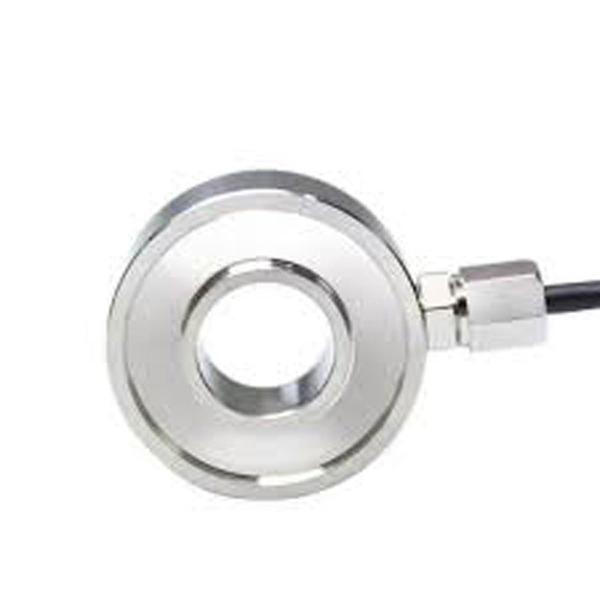

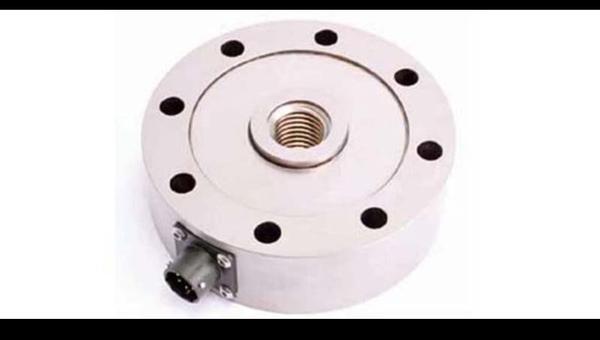

Ring type load cells—often referred to as pancake or annular load cells—are specialized strain gauge sensors engineered for high-capacity force measurement in compact, low-profile spaces. Designed with a distinct ring-shaped elastomeric body, these sensors excel at handling high compressive forces and heavy industrial loads with exceptional stability and accuracy.

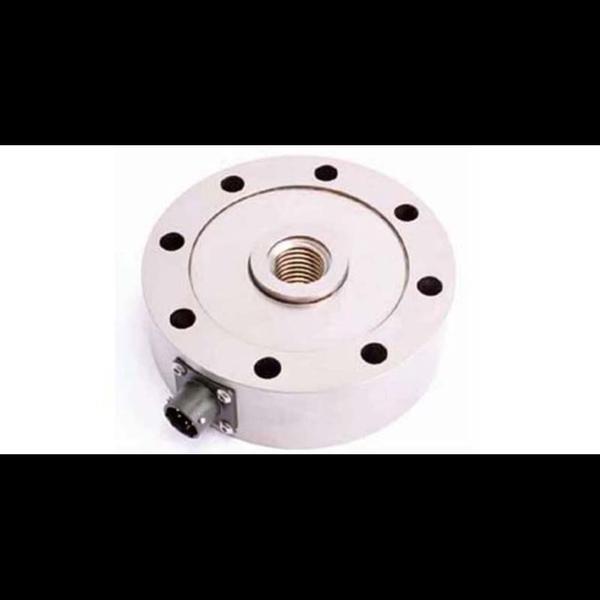

What is a Ring Type Load Cell?

A ring type load cell is a force transducer that utilizes an annular or ring-shaped metallic element (typically high-strength stainless steel or alloy steel) to measure compressive forces.

When an external load is applied centrally to the ring, the element undergoes slight, proportional mechanical deformation. Precision strain gauges bonded to the internal surfaces of the ring measure this deformation and convert the mechanical strain into a precise electrical signal (usually measured in millivolts per volt, mV/V).

Key Design Features

  • Low Profile: Low vertical height makes them ideal for installations with limited headroom.

  • Annular Geometry: The central hole allows for tie-rods, bolts, or hydraulic lines to pass through the center of the cell.

  • Hermetic Sealing: Frequently laser-w…
